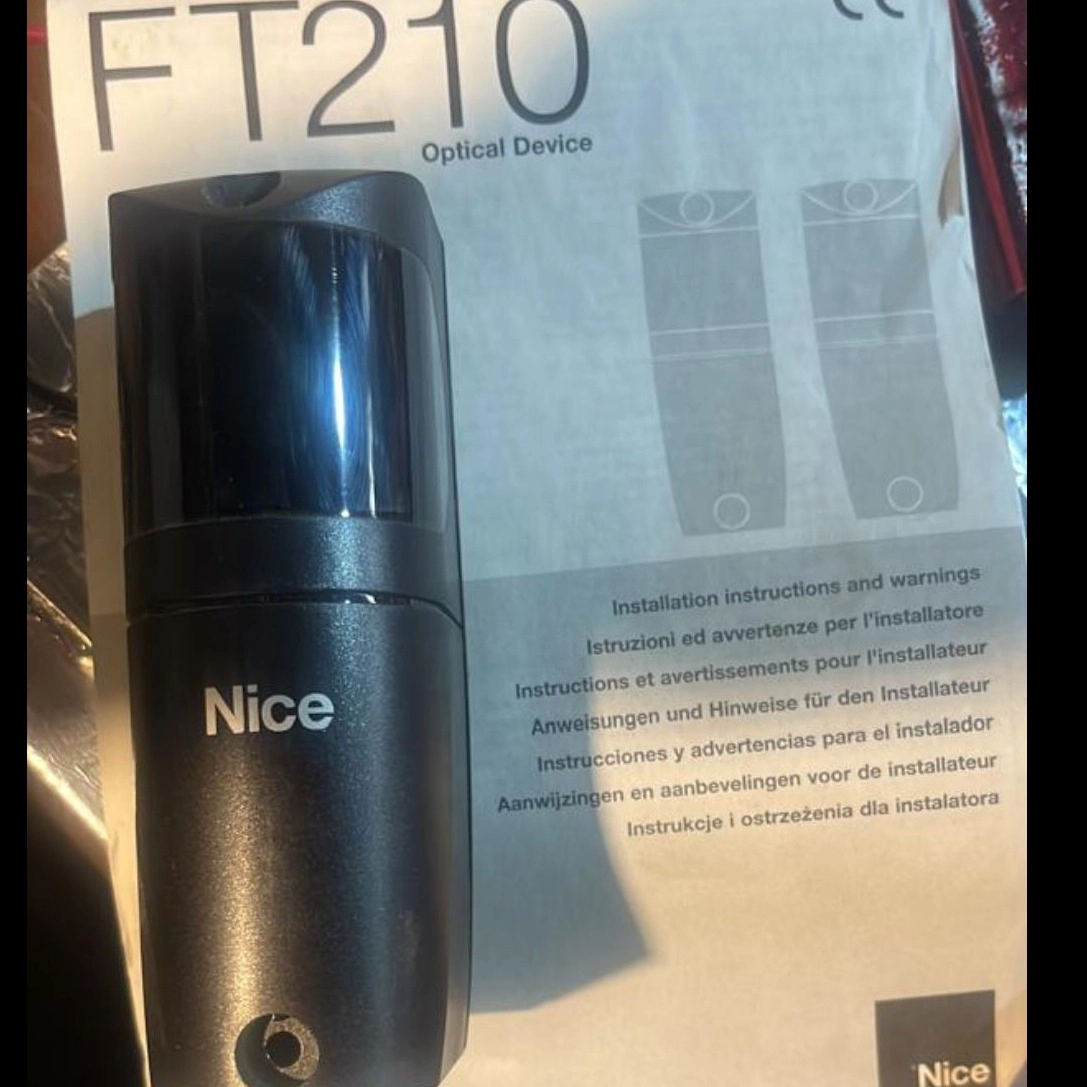

FT210 optical sensor

from Nice company is a photoelectric sensor that is used in automation systems and automatic doors to detect obstacles and increase safety. Technical specifications • Sensor type: photoelectric • Detection range: up to 30 meters • Supply voltage: 12 to 24 V DC • Working temperature: -20 to +55 degrees Celsius • Degree of protection: IP44 • Dimensions: 50x76x29 mm Installation instructions 1. Proper placement: install the sensor at a height and position that provides the best coverage for the target area. 2. Electrical connections: Make the connections according to Nice instructions and ensure proper supply voltage. 3. Angle adjustment: Adjust the angle of the sensor so that the light beam properly covers the target area. 4. Performance test: After installation, test the performance of the sensor by passing an object in front of it to ensure correct detection. Warnings • Electrical safety: Before any installation or repair operation, disconnect the power supply to reduce the risk of electric shock. • Protection against environmental conditions: according to the degree of protection IP44, install the sensor in places with low humidity and dust and use protective covers if necessary. • Periodic maintenance: regularly clean the surface of the sensor from dust and dirt to maintain optimal performance. By following these instructions and warnings, the FT210 sensor will perform optimally in your system.
