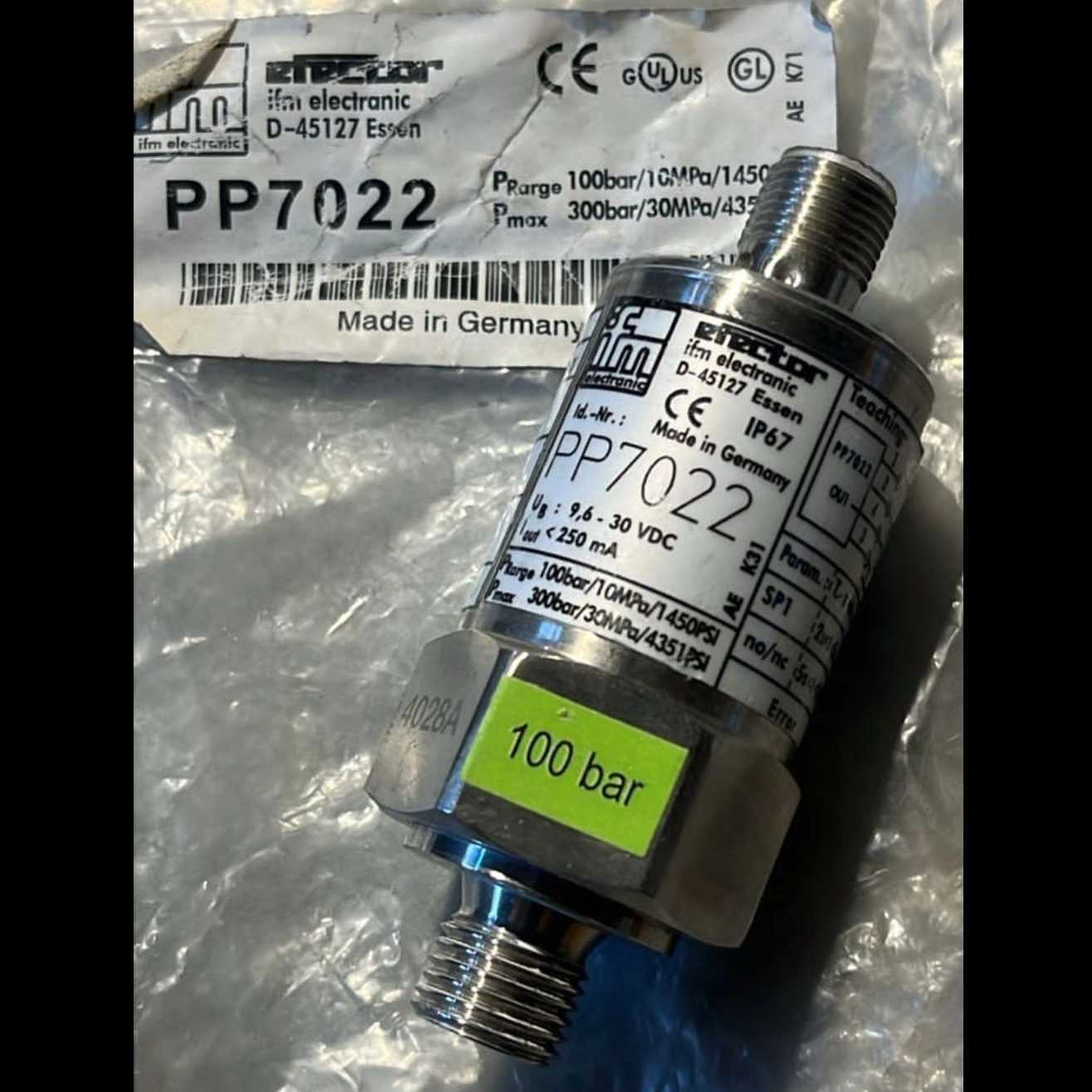

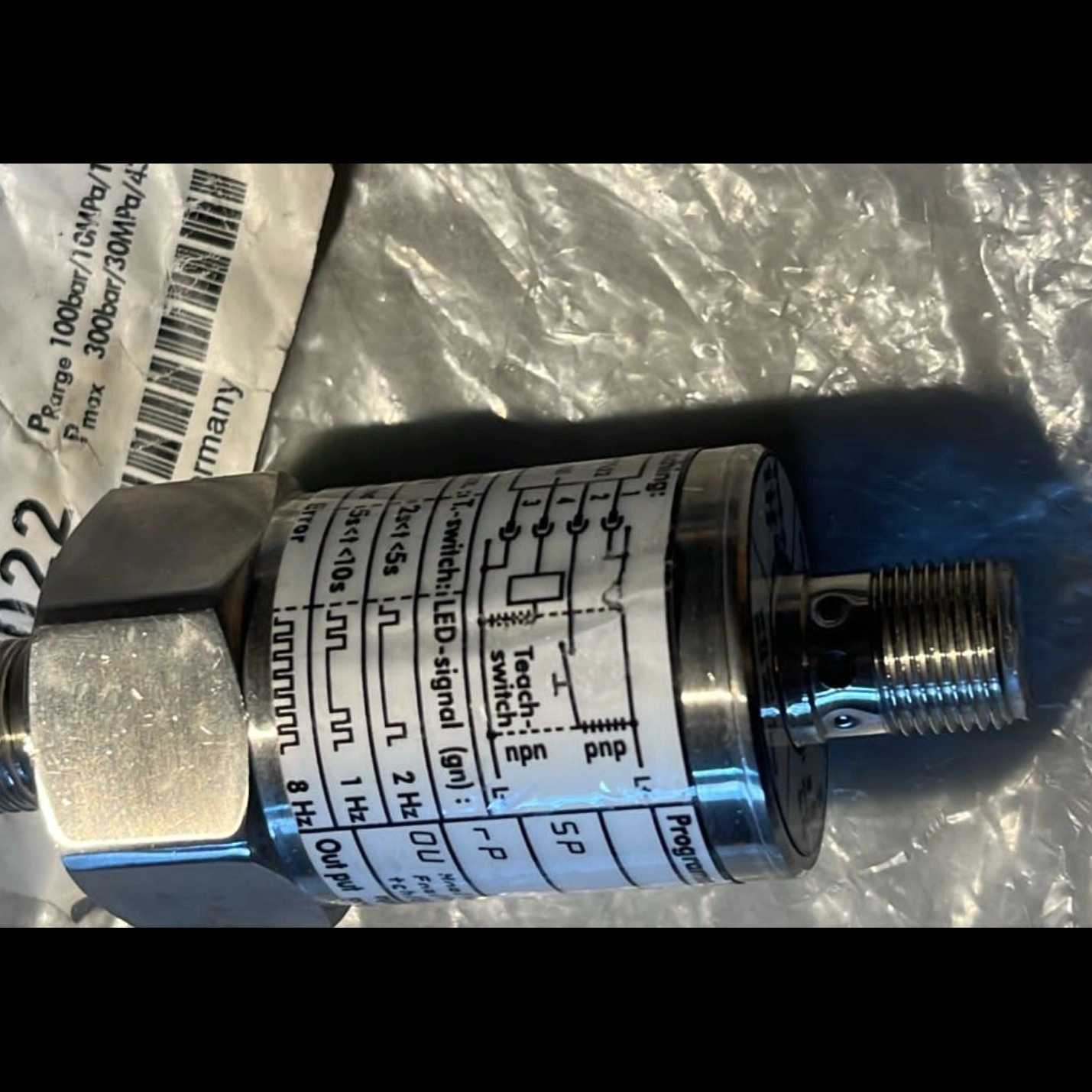

Pressure switch with ceramic measuring cell PP7022 from IFM
IFM company, a leading manufacturer of sensors and industrial equipment, pressure switch Presents the PP7022 using a ceramic measuring cell for accurate pressure measurement in fluids and gases. With its special features, this product is designed for various industrial applications and provides reliable performance in harsh conditions. Technical specifications of pressure switch PP7022: >
• Pressure measurement range: 0 to 100 bar (0 to 1450 PSI / 0 to 10 MPa)
• Pressure type: relative pressure
• Connection type Process: G 1/4 thread (external thread), M5 internal thread
• Temperature range: from -25 to +80 degrees Celsius
• Minimum burst pressure: 650 bar (9400 PSI)
• Maximum allowable pressure: 300 bar (4350 PSI)
• Special feature: use of gold connectors for better accuracy and performance

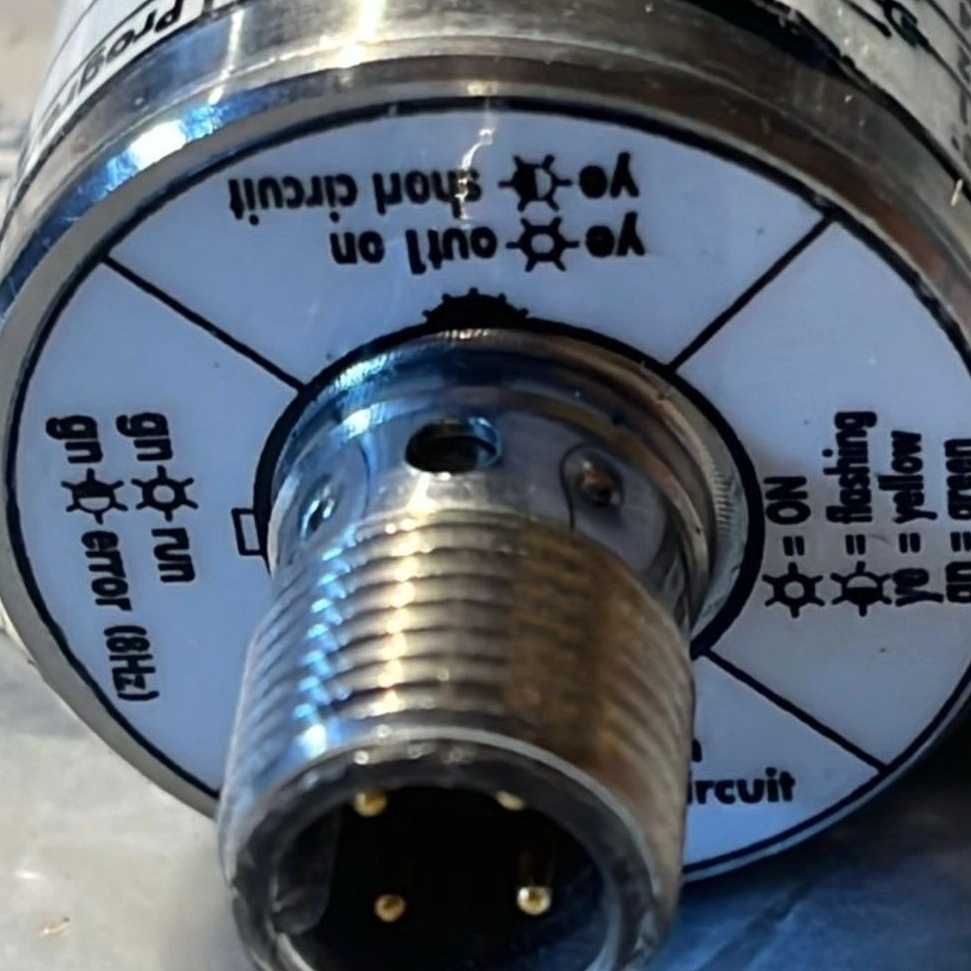

• Electrical connection : Connector M12 with A coding and gold contacts
Functional features:
• Digital output: 2 Digital output with parameterization capability (normally open or closed)
• Switch point accuracy: < ± 1.5% of scale
• Repeatability: < ± 0.1% of scale (with temperature fluctuations) less than 10 degrees)
• Fast response: response time < 3 ms
• Shock and vibration resistance: resistant to shock up to 50g and vibration up to 20g (at frequencies of 10 to 2000 Hz)
• Protection Against environmental conditions: IP67 standard against dust and water penetration
Other features:
• Process connection: G 1/4 external thread and M5 internal thread
• Resistance to more than 100 million cycles Pressure
• Communication port: EPS interface for setting and programming switch points
Applications:
This pressure switch is for use in It is suitable for hydraulic and pneumatic industries, pressure control systems, pressure monitoring in industrial equipment and pressure monitoring in various processes. Elman Sensors in Iran provides this quality product to various industries to have higher productivity and accuracy in their systems.
