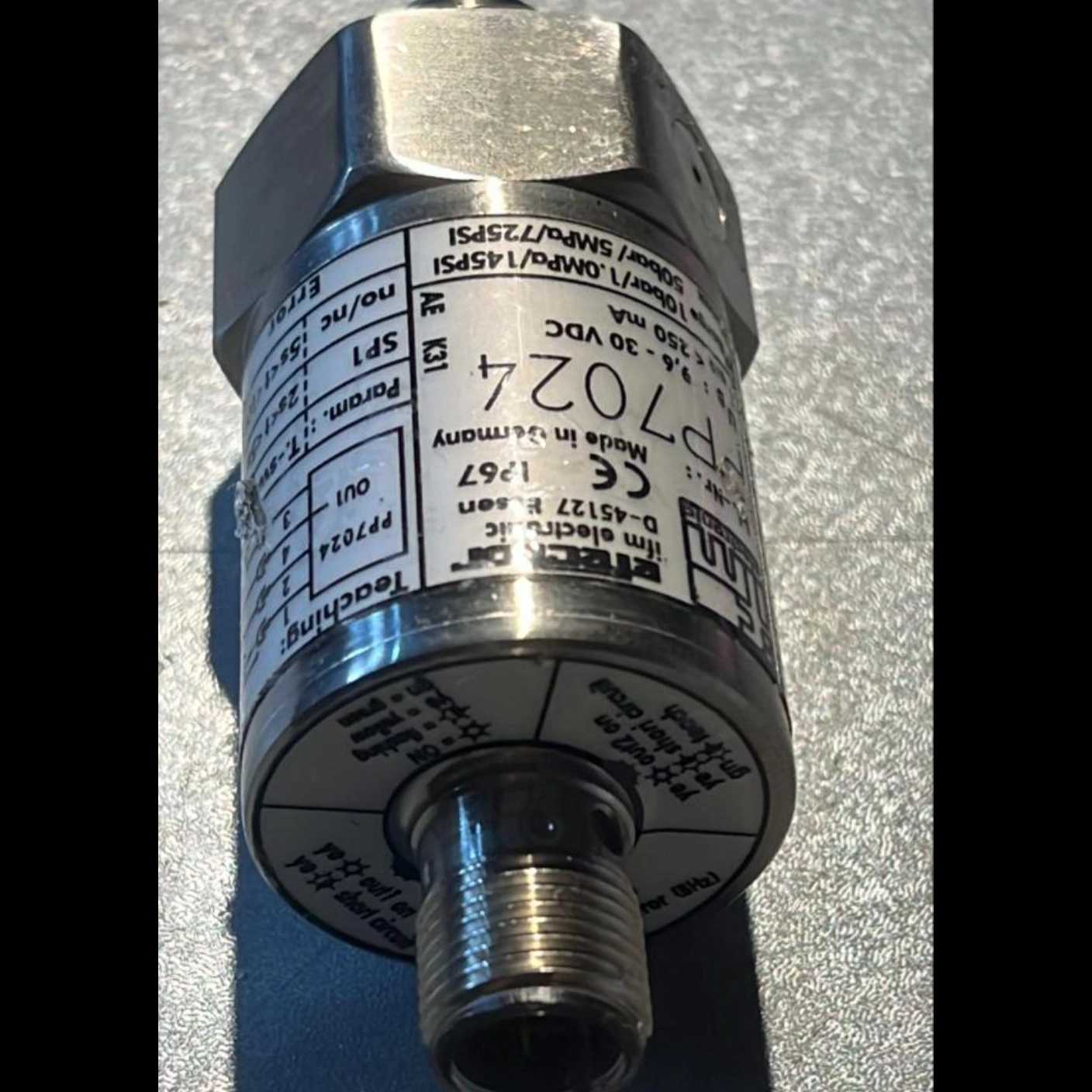

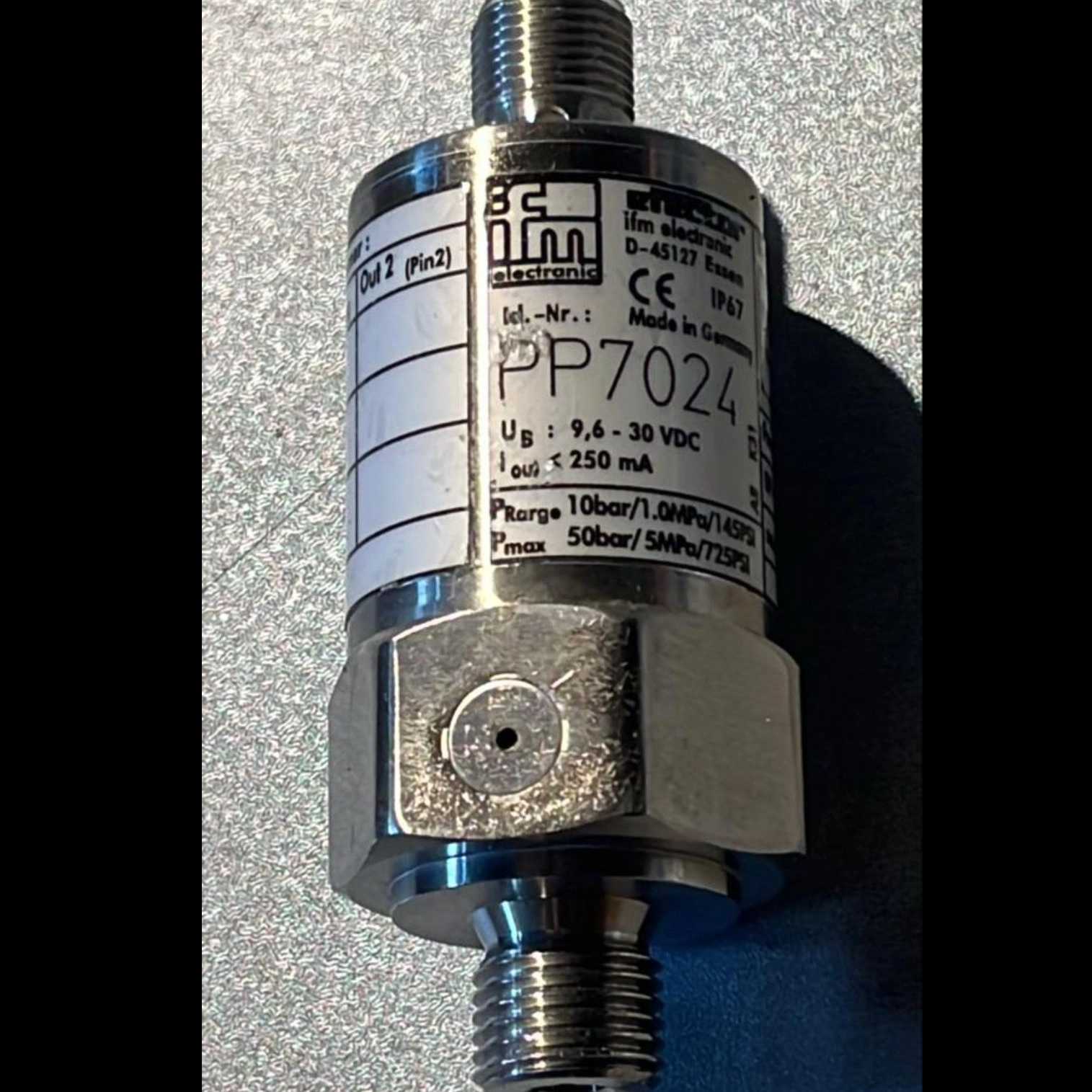

Pressure Switch with Ceramic Cell P7024 PP7024 Pressure Switch is one of the high quality products for industrial applications that uses ceramic measurement cells to accurately measure pressure. This pressure switch is designed to measure and control pressure in fluids and gases and has unique features such as high accuracy and hard conditions. Technical Specifications: • Pressure measurement range: 0 to 10 times (0 to 145 psi / 0 to 1000 kPA) • Type of pressure: Relative pressure • Process Connection Type: 4/4 GG Thread (External Thread), Internal M5 Thread • Temperature range: from -25 to +80 degrees Celsius • Minimum explosion pressure: 150 times (2175 psi) • Maximum allowed pressure: 50 times (725 psi) • Special Feature: Use Golden Calls to More accuracy • Type of electrical connection: M12 connector with coding A and golden calls Functional Features: • Digital output: 2 digital output with parameter capability (ordinary open or closed) • Switch Point Precision: <± 1.5 % of the scale • Repeat: <± 0.1 % of the scale (with temperature fluctuations below 10 degrees) • Quick Response: Response Time <3 milliseconds • Anti -shock and vibration system: shock -resistant up to 50g and vibration up to 20G (at 10 to 2000 Hz frequencies) • Resistance to environmental conditions: IP67 protection against dust and water penetration Extra Features: • Coast: stainless steel (304/1.4301) for more durability • Process Connection: External Thread G 1/4 and M5 Internal Thread • Resistance to more than 100 million cycles of pressure • Communication Port: EPS interface to set up and plan switch points Applications: This pressure switch is designed for use in various industries, including pressure control in hydraulic and pneumatic systems, fluid and gases monitoring, and pressure monitoring in industrial processes. Using this pressure switch, it can be ensured that industrial systems are protected against unauthorized pressures and have accurate and stable performance.
