LM24 Series Accommunications

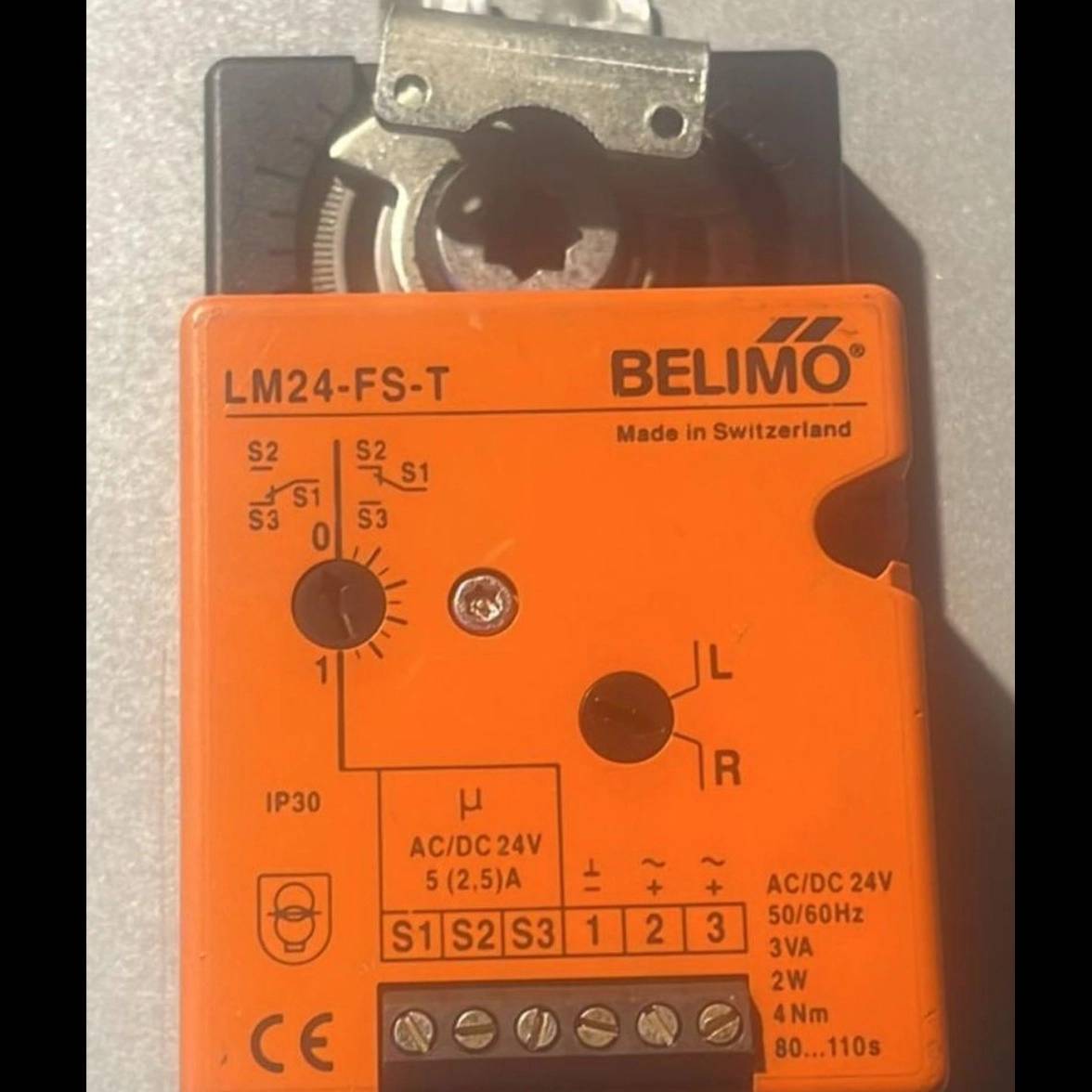

from Belimo to control the damper in air conditioning (HVAC). In the LM24-FS-T model, each part of the code shows specific features: • LM24: It represents the 4 Nm of torch series and a 24V AC/DC working voltage. • FS: This section indicates the presence of adjustable auxiliary switches in the ocular. This switch allows the user to send control signals in certain positions of the damper.  • T: This letter indicates a terminal connection, which specifies a specific type of electrical connection. LM24-FS-T Technical Specifications: • Nominal torque: at least 4 Nm • rotate angle: maximum 95 degrees (adjustable with mechanical stops) • Rotation time for 95 degrees: about 150 seconds • Type of Control: on/off (on/off) • Energy consumption: 2 watts • Power consumption for wire size: 3V • Nominal voltage: AC 24V 50/60 Hz, 24V DC • Working voltage range: AC/DC 19.2… 28.8V • Occupational temperature :-30 to 50 degrees Celsius • Workplace humidity: maximum 95 % RH, no distillation • Weight: about 0.65 kg These unicchools are installed directly on the damper shaft and are easy to install using universal clamp. Also, an anti -rotational mechanism is provided to prevent unified unwanted movement.  Contact the critical Industrial Group for more accurate and better information.
