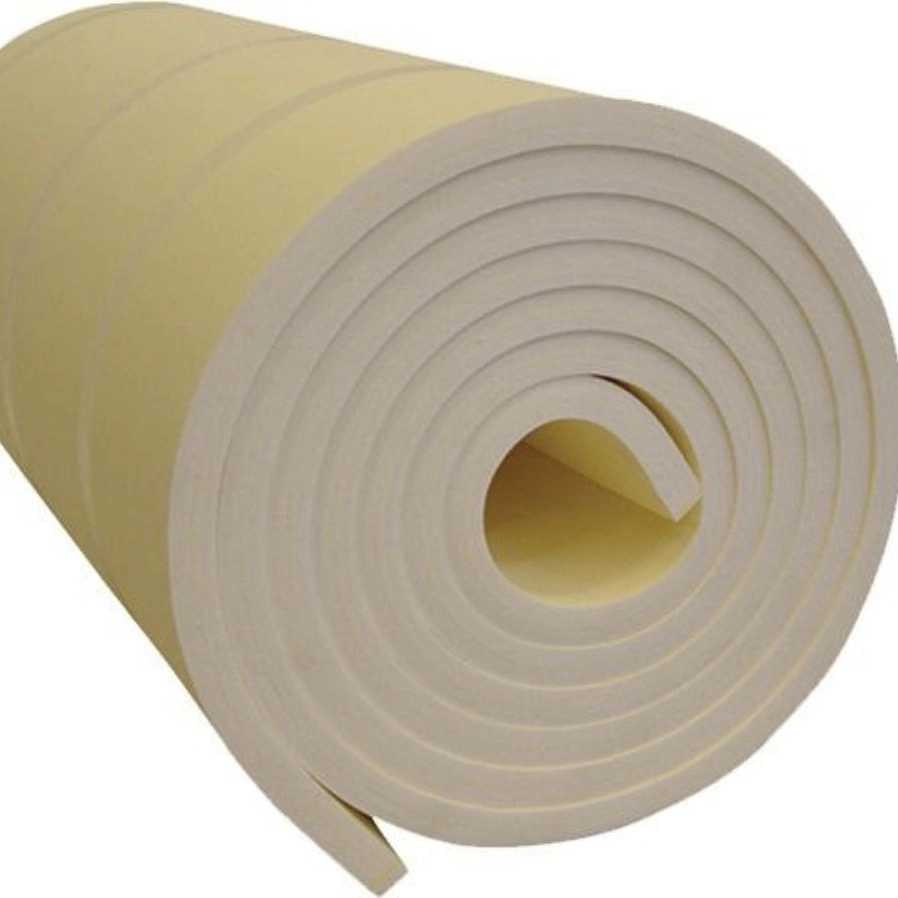

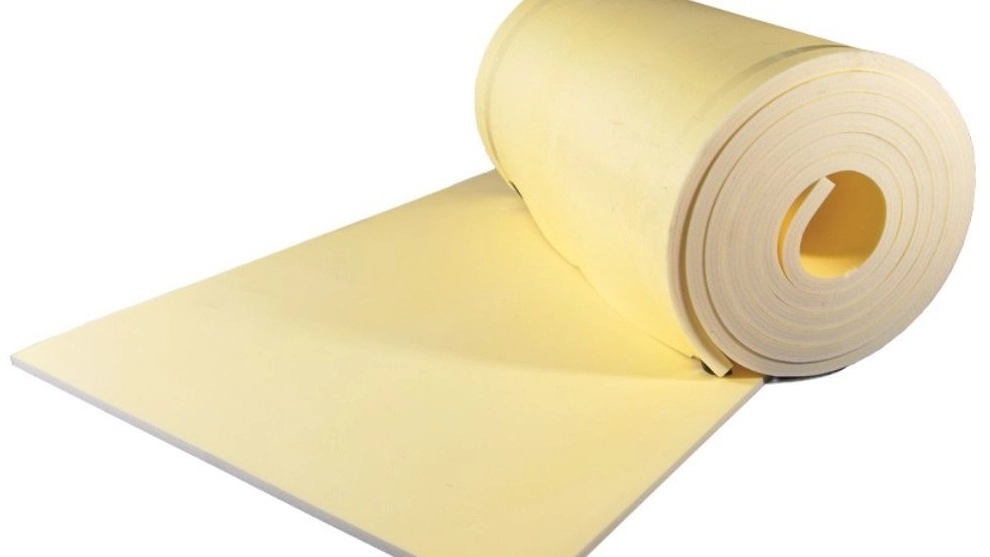

Cross Polyethylene Foam (XLPE)

This insulation is caused by the creation of the three -dimensional structure by baking. Also, the thicknesses of 3 to 35 mm are rolled, 40 to 120 mm in mattresses and in the density of 30 to 200. The thicknesses of 10 to 25 mm are produced in size of 3.8 to 5 inches in the foam of the pipe. The above insulators are capable of being lined with a variety of aluminum, metallic, polymer films, PVC.

Specifications of XPE foam according to the results of the Road, Housing and Urban Development Research Center:

(ASTM D3575-w) Density: 200-30kg/M³

thermal tolerance: 90 ° C

(ASTM D3575-B) Pressure Mania: 20%<

flammability (DIN 4102): B2 class

(ASTM C335) The thermal guidance coefficient: 0.033W/m ° K

water vapor permeability (National Iranian Standard-A7292): 0.003mg/HMPA

water absorption: (ASTM D3575-L) :. 03kg/m²z

water vapor resistance coefficient (National Iranian Standard - 7292): 6.788mm²pa/mg

(ASTM D412) Talented Strength: 0.3MPA

w: Water vapor penetration coefficient (National Standard of Iran - p. 7299): 0.169mg/hm²pa

(ASTM D412) Increase: 110%G

Water Transfer (National Standard of Iran - p. 7299): 204.26mg/HM²
