General specifications

Other Features

Model

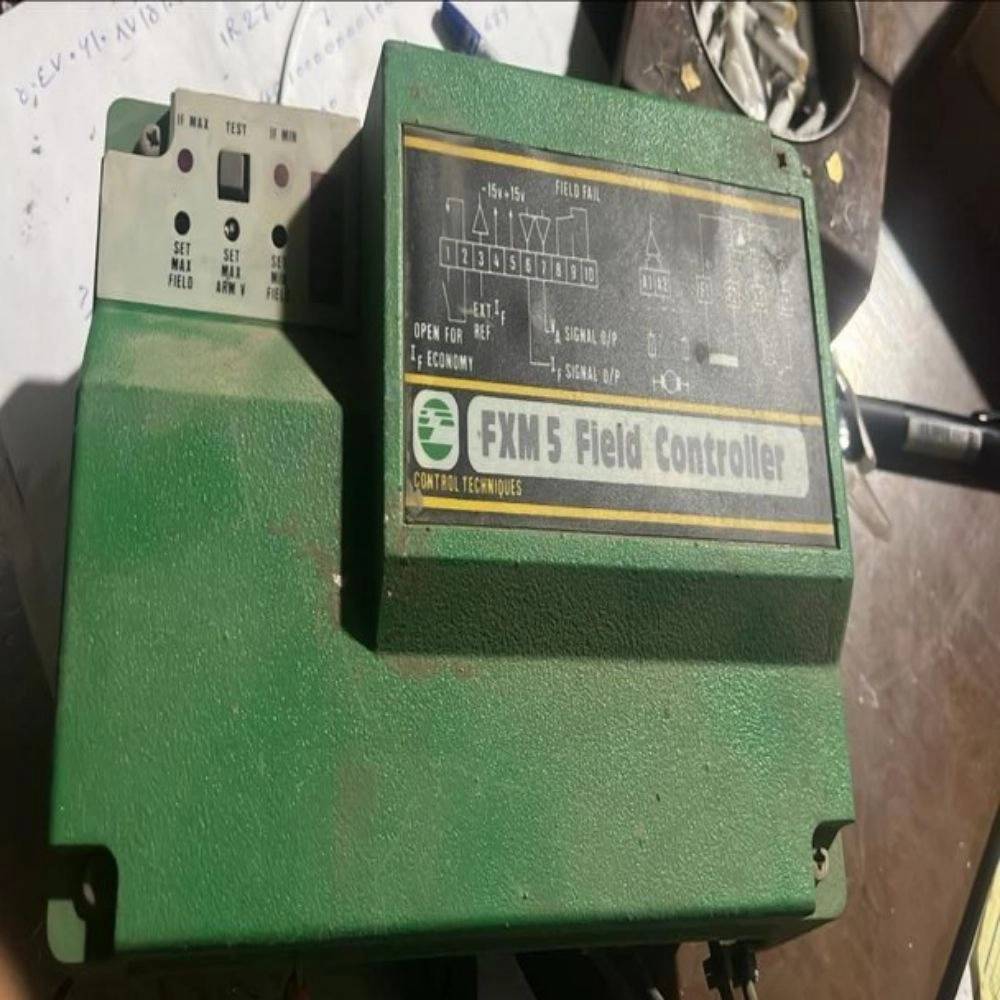

FXM5 Field Controller module or DC field flow controller:

FXM5 (Field-Current Controller) is made by Control Techniques (EMERSON/NIDEC subsidiaries) designed to control the flow of DC field current with field coil. This controller plays a key role in reaching the engine to higher speeds than the base speed.

Features and applications:

  • Flow Models: Usable Up to 20 AA field flow.

Working modes:

  • Field Weakening: Reducing field flow to achieve higher speeds with fixed power.
  • Manual current or external reference (External Reference).
  • Integration with Mentor II DRIVES: Possibility Has.

Internal Protection:

  • Field-Failure Relay Relay to protect against loss of field.
  • Squad LED display display to display current status status.

Suitable in industrial applications:

  • precise speed control in machinery.
  • Application in sections such as production lines, material displacement and wherever the speed of DC variable.

Installation Guide:

  • Installation: The module must be installed vertically and at a level where the air flow passes through the height.
  • Setting the voltage of control and power through special jumpers (eg, the control voltage of 220V or 380V).
    • Internal.
  • Usable in Independent or Mentor II drive mode, adjusting the relevant parameters in the Mentor drive.

    • Prices (World Market):

    • Motionsurplus: Price around $ 1,150 for the new module.

    FXM5 Field Controller module catalog
