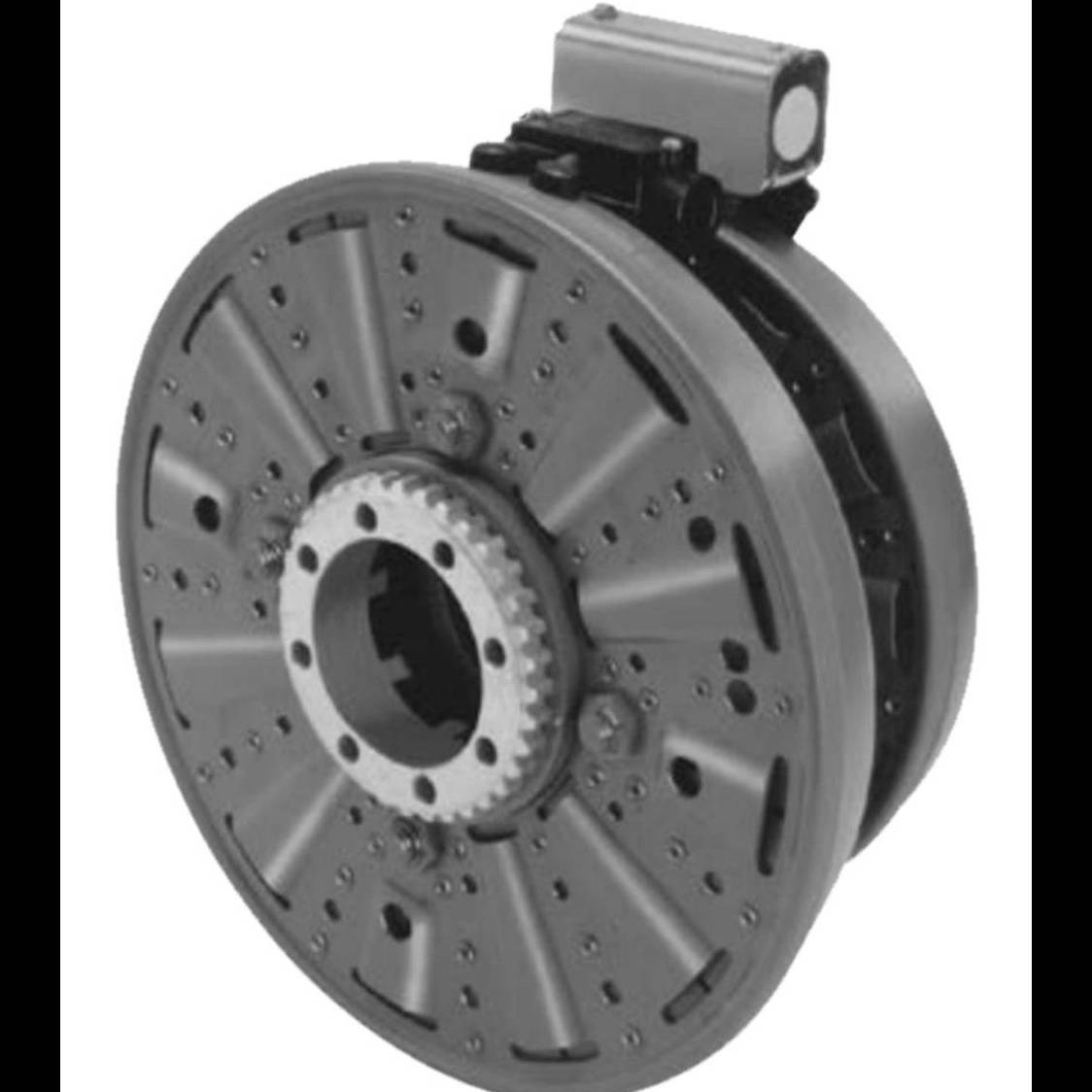

🔧 Clutch and brake Warner America | PCB series – combining power and precision in a compact design
Warner Electric USA clutches and brakes are among the most accurate and reliable power transmission systems in the world.
The PCB series is the result of combining two advanced technologies, PC electromagnetic clutch and PB electromagnetic brake in a compact design that provides fast response, precise control and very high durability.
⸻
⚙️ Technical specifications of PCB-1225/1000 Heavy Duty model
PCB-1225/1000 Heavy Duty model is designed for heavy industrial applications.
This model acts as a primary clutch-brake (Primary Clutch Brake) and can be installed on shafts with a diameter between 0.5 and 2.5 inches.
Its maximum tolerable torque is 465 lb-ft and can provide stable and precise performance at speeds up to 3,000 rpm.
This system is powered by 6, 24 or 90 volts DC, which is selected depending on the type of control and command system.
The outer diameter of this model is 12.75 inches and its overall length is 6.25 inches.
Its technical drawing number is I-25611 and like other Warner products, it comes with precision American build quality.
⸻
🧩 Modular design and customization capability
PCB series clutches and brakes are composed of standard components but can be assembled and customized.
The user can choose the combination he needs from Warner standard parts based on the type of application, shaft size, torque and installation conditions.
This feature makes it possible to achieve the best performance in the smallest possible space with a lower initial cost.
Other advantages of this design include easy installation in different situations, quick response in engagement and release, and long working life.
⸻
🏭 Applications
Warner clutches and brakes are an ideal choice, especially in systems that require precise stopping, instantaneous speed control, or smooth, shock-free operation.
• Printing, packaging and cutting machines
• Conveyor equipment and material transfer lines
• Metal pressing and punching devices
• Robotic systems and industrial automation
• Oil, gas, petrochemical and energy industries
⸻
🇺🇸 About the Warner Electric brand
Warner Electric Company is a subsidiary of Altra Motion International Group in the United States and has more than 70 years of specialized experience in the design and production of electromechanical clutch and brake systems.
Products of this brand are produced according to ISO 9001 standard and are used by advanced industries in more than 60 countries of the world.
⸻
