General specifications

Model

CKI_G85

Capacity

85000 kcal/hr

Fuel consumption

natural gas

Contains

It has a control relay, manual air damper, electric valve, air and gas compressor

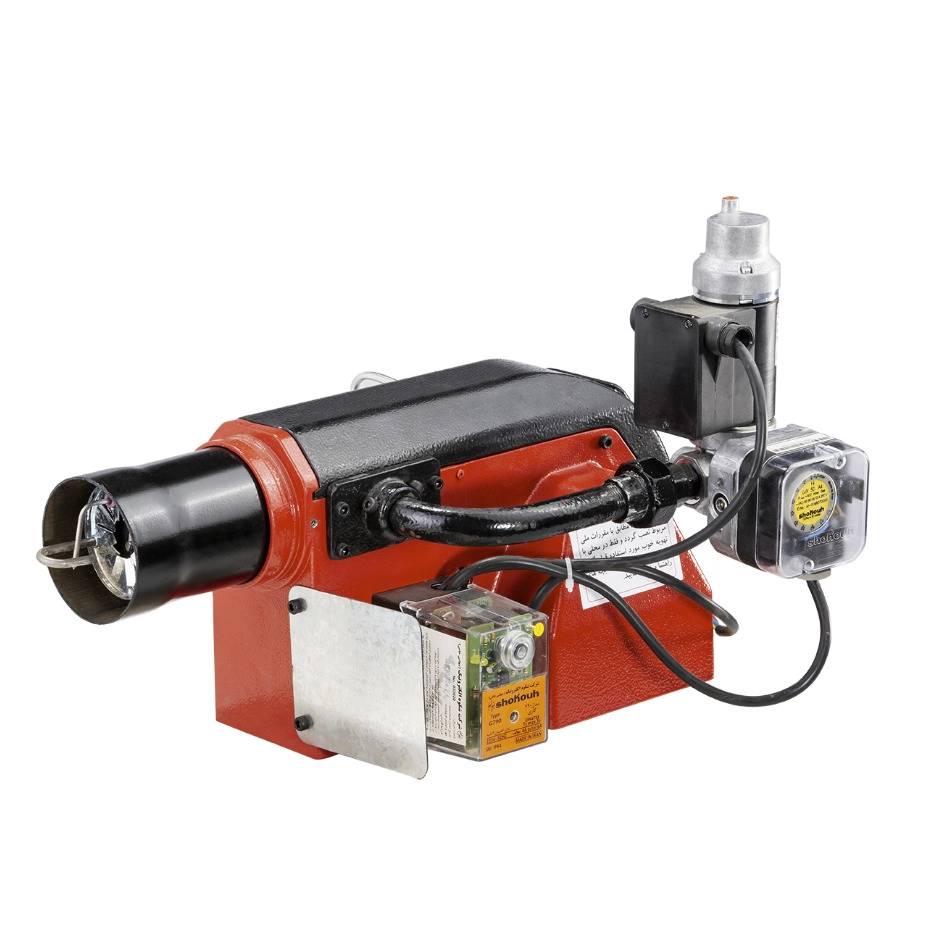

CKI_G85 model gas burner

CKI_G85 Model CKI_G85 gas torch is made to increase the efficiency of the products used in the engine room and is suitable for all types of cast iron boilers. Choosing the right burner is very important because burners are one of the most important and effective parts of heating supply systems.

One of the most important features of the CKI-G85 gas burner that should be mentioned is the fuel type of the product, which is natural gas. Also, this product has a maximum heat capacity of 85,000 kcal/hr.

General characteristics of the CKI_G85 model gas burner

  • Maximum heat capacity 85,000 Kcal/hr
  • High efficiency
  • No switchboard
  • Single-phase power consumption
  • Has integrated body
  • Has 2800 RPM engine speed
  • Natural gas fuel consumption
  • One-stage combustion method
  • Has 1/2 gradual gas solenoid valve inch
  • with ionization rod type flame monitoring system
  • with control relay, manual air damper, solenoid valve, air and gas pressure
  • useful life span of more than 15 years (under ideal conditions of installation)
  • super gas torch suitable for heating boilers Super 7-300 and 8 blades, solar 7-300 to 8 blades, Super 200-8 and the ground package of Shofajkar is Azarakhsh7.

Shofajkar company

In the 1940s, when the vacuum of a facility company was well felt in the entire Iranian consumer market, the shareholders of Shofajkar Company realized this need and with the approach of domestic production and localization of facility knowledge, established Shofajkar Industrial Company.

Obviously, the creation of this company needed infrastructures, which due to the time of the creation of the company and the lack of practically necessary conditions, the provision of these infrastructures for the whole country was done by the efforts of this group, and Latifi Installation Store Latifi officially started its cooperation with Shofajkar Company since 2016

Shofajkar company bought machines and equipment and production know-how from Ahlmann factory in Germany and started production under the license of the German company. And from the very beginning, by using advanced technical knowledge and expanding connections with the world's big companies, it has introduced itself as the first producer of all kinds of cast iron boilers and today engine burners in the Middle East region.

CKI G85 gas burner performance

  • Incoming air flow rate is manually controlled by the air damper installed in the burner body, based on its capacity.
  • Gas burners are divided in terms of performance into types with blower or fan as well as types without fan (no sound). The burners used in apartment packages are gas burners without blower and silent. Passing through the gas filter is controlled by an electric valve and the air required for their combustion is provided by a blower installed on the engine shaft. The gas flow passes through a filter, mixes with the combustion air and is ready for combustion. If the combustion air pressure is lower than a certain limit or the gas pressure is higher or lower than the desired value, this issue is sensed by the built-in pressure sensors and the burner is turned off by the air and gas pressure switches through the relay command.

The components of the stove burner

  • Gas pressure switch is used to control the operation of gas.
  • Air switch pressure is used to control the air flow necessary for ignition.
  • Control relay This part is responsible for controlling the operation of the burner in such a way that by monitoring the stage burners, it has a pilot and by coordinating the different steps until the main flame occurs, it warns in case of any problem.
  • air adjustment damper to adjust the incoming air for ignition
  • spark transformer The task of this part is to create a spark in the heater burner and as a result, ignition.

A guide to choosing and buying a stove gas burner

  • When choosing a CKI-G85 heating gas burner, pay attention to the diameter of its flame tube to allow the pipe to enter the boiler and install the burner. In general, when choosing a CKI-G85 heating gas burner, in addition to the need to pay attention to the type of burner fuel, it is necessary to consider the capacity of the burner about 20% more than the capacity of the boiler or heater combustion chamber for various reasons.
1.     The calorific value of each liter of diesel is approximately equivalent to K.cal 8500.

2.     The calorific value of each kilogram of diesel is approximately equivalent to 10500 K.cal.

3.     The calorific value of each cubic meter of natural gas is approximately equivalent to K.cal 9200.

4.     For every 300 meters increase in height from the surface or due to the decrease in air concentration, the fuel combustion efficiency of all types of burners decreases by about 4%.

  • Installing a gas filter with the right size and working pressure after the quarter-round gas valve and before the gas regulator and gas shock or gradual burner gas valves is one of the first equipment required for the gas line in gas burners.
  • This burner is suitable for Shofajkar models Super 7-300 and 8 blades, Solar 7-300 to 8 blades, Super 8-200 and Shofajkar ground packages. Azarakhsh is 7.
  • If the pressure of the gas line supplying the burner fuel is 2 pounds, it is necessary to use a balancer to adjust and balance the small changes in gas pressure feeding the gas burner with the required size and flow rate of the burner gas, at the beginning of the gas line. Also, if the burner gas pressure is higher than 2 pounds (15 or 30 to a maximum of 60 pounds), it is necessary to install a gas regulator with the appropriate size, working pressure, and gas flow rate at the beginning of the burner gas line.

Warranty of CKI_G85 model gas burner

Shofajkar torches have 15 months warranty and 10 years of after sales service of Shofajkar company.
