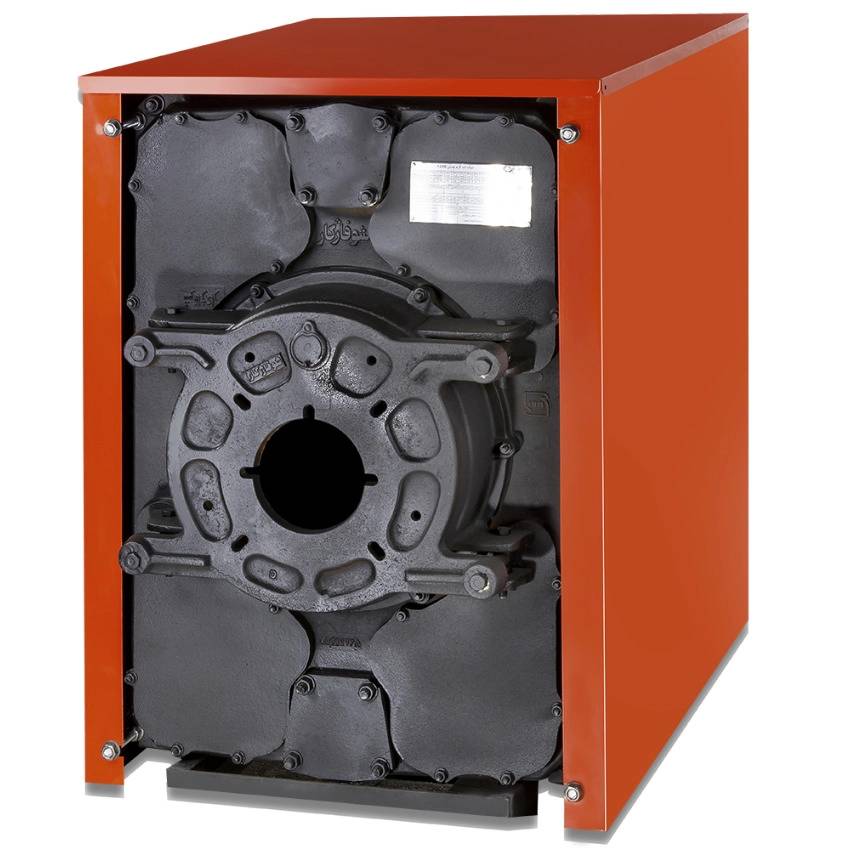

Introducing the cast iron stove model Star 7-1300

cast iron boiler The Star 1300-7 model heater has been produced and marketed since the 1380s, and because these boilers are a suitable alternative to integrated steel boilers (which have large dimensions and heavy weight), for use in central heating systems of large buildings And high-rise buildings with a capacity of 494,000 to 1,300,000 kcal/hr are very suitable.

Key feature:

• 10 years warranty of Shofajkar company
• with standard 4472 and 4473 of Iran
• with a capacity of 496000 kcal/hr and number of 7 blades
• with cover and boiler paste and harness shaft
• three-pass design to increase maximum efficiency
• maximum tolerated temperature of 105 degrees Celsius
• suitable insulation To minimize energy loss
• Hinged burner door that can be opened on both sides
• Has a heat shield to prevent the flame from hitting the blades
• Fabric design with maximum heat exchange through the creation of fins on the surface
• Metal chassis suitable for expansion and contraction due to temperature changes
• Has a water spreader pipe for proper distribution of water in the boiler circulation
• Can be started with burners Standard gas, diesel and fuel oil
• Equipped with slatted surfaces inside the water channel to increase the heat level
• Designed as single fins that can be assembled in the engine room for ease of transportation
• Sofajkar 1300 cast iron boilers are finned and can be transported through an elevator or staircase without the need for a crane
• From Star model Shofajkar cast iron boilers 7-1300 with the ability to operate up to 100 meters high is used in high buildings up to 30 floors for the production of health spas and heating spas
• Shofajkar model Star 7-1300 cast iron heating boilers are made of refractory cast iron alloy and are produced in the form of separate fins and are resistant to oxidation and air humidity and condensate from combustion

Complete features of Shofajkar model Star 7-1300 cast iron pot

In the 40s, when the vacuum of a facility company was well felt in the entire Iranian consumer market, the shareholders of Shoufagekar Company, understanding this need and with the approach of domestic production and localization of facility knowledge, proceeded to establish Shoufagekar Industrial Company.

Obviously, the creation of this company needed infrastructures, which due to the time of the creation of the company and the lack of practically necessary conditions, the provision of these infrastructures for the whole country was done by the efforts of this group, and Latifi Installation Store Latifi officially started its cooperation with Shofajkar Company since 2016 did Shoufagekar company bought machinery and equipment and production know-how from Ahlman factory in Germany and started production under the license of the German company. And from the very beginning, by using advanced technical knowledge and expanding connections with major companies in the world, it has introduced itself as the first producer of all kinds of cast iron boilers in the Middle East region.

Over time, with the expansion of production, today it produces and exports a large volume of gas and diesel fuel products from 18,000 to 1,300,000 kcal/hour and solid fuel boilers from 25kw to 100kw to domestic and foreign markets.

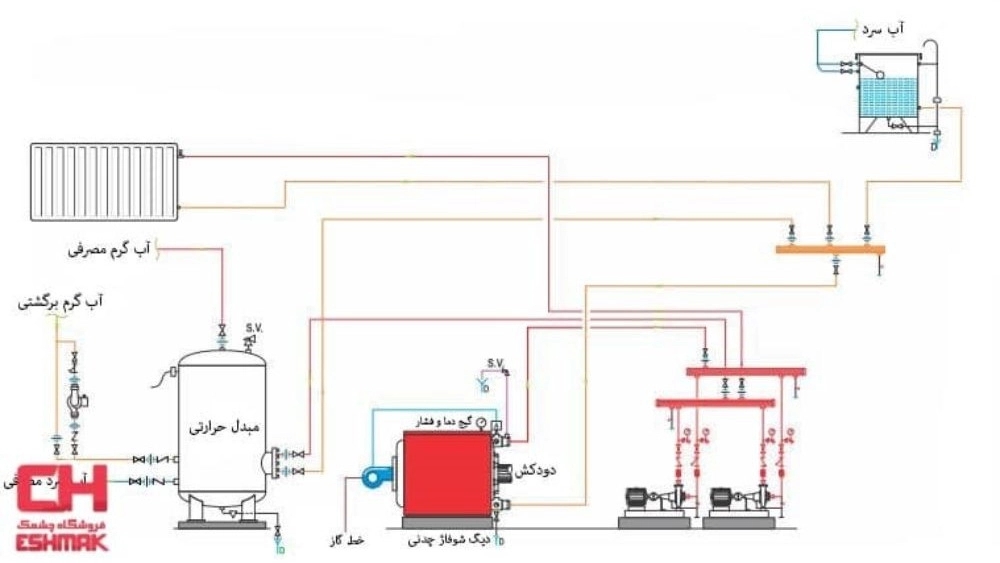

Details and performance of Shofajkar model Star 7-1300 cast iron boiler

Cast iron boilers should have high strength against oxidation and other harmful chemical factors, as well as destructive factors of the installation site, such as humidity and condensate from combustion, which is fully achieved by the insulation, thickness and quality of the 1300 Star cast iron boiler.

In Chauffagekar cast iron boiler model 1300 Star, the thickness of the fins is about 8 mm, which has reduced the possibility of damage and deformation of the fins to a very, very low level.

Cast iron boilers are made of cast iron material, which has a very high resistance to heat, wear, rusting, and metal corrosion by chemical substances, and due to the uniform body material, bipolar corrosion does not occur in this cast iron boiler.

The water distribution pipe of cast iron heating boilers is made of polyamide, which is located in front of the return water flange to the assembly boiler, which balances the temperature level and reduces the heat-thermal shock due to the water entering with a low degree of heat to the wall of the heating cast iron boiler, which increases the resistance and operation of the boiler.

The thickness of the body of the boiler is 6 mm and all the fire-eating parts are reinforced with prominent fins for the working pressure of 5 atmospheres and the temperature of 105 degrees Celsius and increasing the heat absorption levels. The hydraulic test pressure of the boiler is 8 atmospheres and its destructive test is 40 atmospheres.

• Very little pollution

The three-pass design of combustion gases in contact with finned surfaces and complete combustion direct absorption of heat in the boiler channels and the gradual drop in flame temperature reduces the amount of NOX produced by force burners to less than the permitted standard.

• Insulated gown

Red in color with glass wool lining that minimizes thermal and radiation losses of the boiler body. The cover parts are easily attached to the body of the boiler after assembly and can be easily separated from the boiler for control and inspection of the boiler without tampering with the piping system.

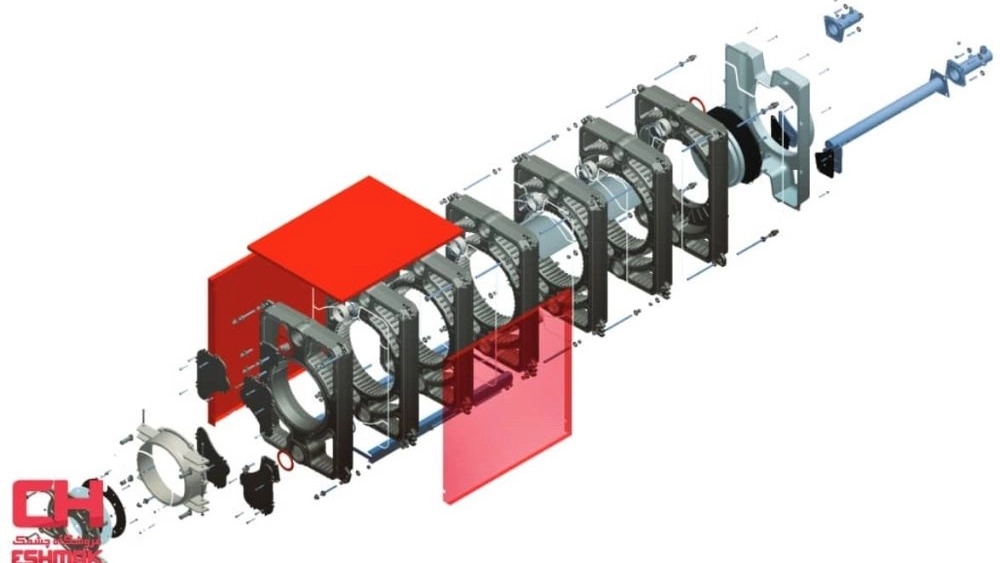

Calculation of the capacity of the cast iron stove model Star 1300-7

• Any change in the final price of cast iron heating boilers model 1300 will be announced at the time of purchase inquiry.
• The dimensions and price provided for the above heating boiler are considered with a cover.
• Usually after the above calculation, up to 20% is added as a confidence factor to the calculated capacity of the motorhome spa boiler.
• Installing a manometer thermometer to display the temperature The hot water in the boiler as well as the pressure of the building's heating system is required on every cast iron boiler of the engine house.
• Also, the installation of a submerged thermostat (immersed Augustat) with a temperature range of 30 to 90 degrees Celsius (or 30 to 110 degrees Celsius) to adjust the boiler temperature and the off-on command to the burner relay on every cast iron heating boiler is mandatory.
• Considering that the installation of all the main equipment The engine house, including the central heating boiler, is placed on a pre-made concrete foundation with suitable dimensions according to the placement plan and exactly where the equipment is located. Therefore, before installing the main equipment of the engine house, including the cast iron heating boiler, proceed with the installation of the required concrete foundation according to the defined dimensions and standards. To calculate the approximate power of the required cast iron boiler, first multiply the useful floor area of the building by 100 (kilocalories) and then for Add 6000 (kilocalories) for each residential unit to supply hot water. For example, for a building with a useful infrastructure of 3500 square meters and 20 apartment units, the required heating power of the boiler is: 470,000 kcal=(20x6000)+(100x3500)

The warranty of cast iron stove model Star 7-1300

Shofajkar model Star 7-1300 cast iron boiler, like other Shofajkar products, in addition to a 10-year warranty, has extensive technical support and after-sales services of this company throughout the country.

An overview of the Star 7-1300 model

The hot water boiler or cast iron heating boiler is actually the beating heart of the building's central heating system. which is the main part of the engine room facility, which transfers heating to different parts of the building. Cast iron boilers are made piece by piece. that by increasing the number of blades of the boiler, the thermal capacity of the boiler also increases.

The structure of the blades of the cast iron boiler is designed in such a way that the heat from combustion transfers its temperature to the water in the flow as much as possible.

Dear customers, you can contact our sales experts regarding capacity calculation and knowledge of prices and how to deliver the product with original warranty.
