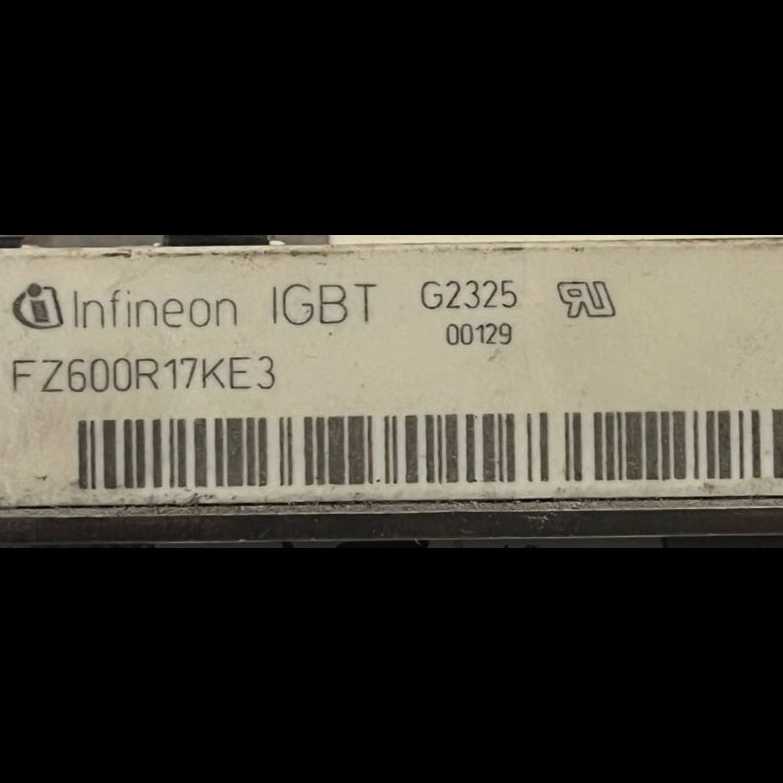

FZ600R17KE3 IGBT module — product of Infineon Germany

product introduction

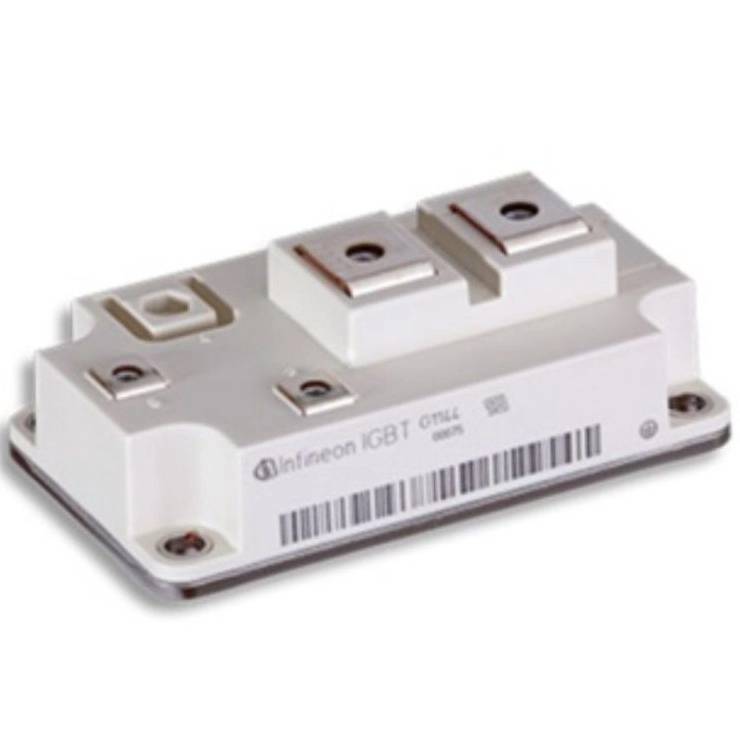

The power module FZ600R17KE3 is one of the industrial IGBTs of Infineon Technologies, which is designed for high pressure applications and heavy power electronic systems. This module is one of the most popular IGBTs in heavy industries with its very high current capacity, 1700V voltage and excellent performance efficiency.

⸻

Brand and country of manufacture

• Brand: Infineon Technologies

• Country of manufacture: Germany / Europe

• Technology series: IGBT third generation (IGBT3 – trench/field-stop)

Infineon is one of the most reliable manufacturers of power semiconductor parts in the world, and the company's products are widely used in power plants, railways, industrial inverters and automotive equipment.

⸻

main technical specifications

• Collector-emitter voltage (VCES): 1700 V

• Nominal collector current (IC): 600 amps

• Peak current: up to about 800-1200 amps depending on conditions

• Saturation voltage (VCE(sat)): about 2 to 2.4 volts

• Allowed connection temperature (Tj): up to 150 °C

• Structure: single switch module (Single IGBT) with internal stray diode

• Package: industrial module with isolated Base-plate

• Features:

• Low casualties

• High efficiency

• High insulation safety

• Suitable for working in harsh industrial conditions

⸻

Applications

The FZ600R17KE3 module is designed for systems that require high power, high current and reliable switching, including:

• AC and DC industrial drives with power of several hundreds of kilowatts

• High power inverters

• Industrial UPS systems

• Large motor controllers

• Industrial chargers and rectifiers

• High power welding equipment

• Solar inverters and wind turbines

• Electric and rail transportation systems

⸻

Advantages

• Suitable for high power projects

• Low losses and high electrical efficiency

• Long life and high stability

• Standard insulation and high safety

• European manufacturing quality
