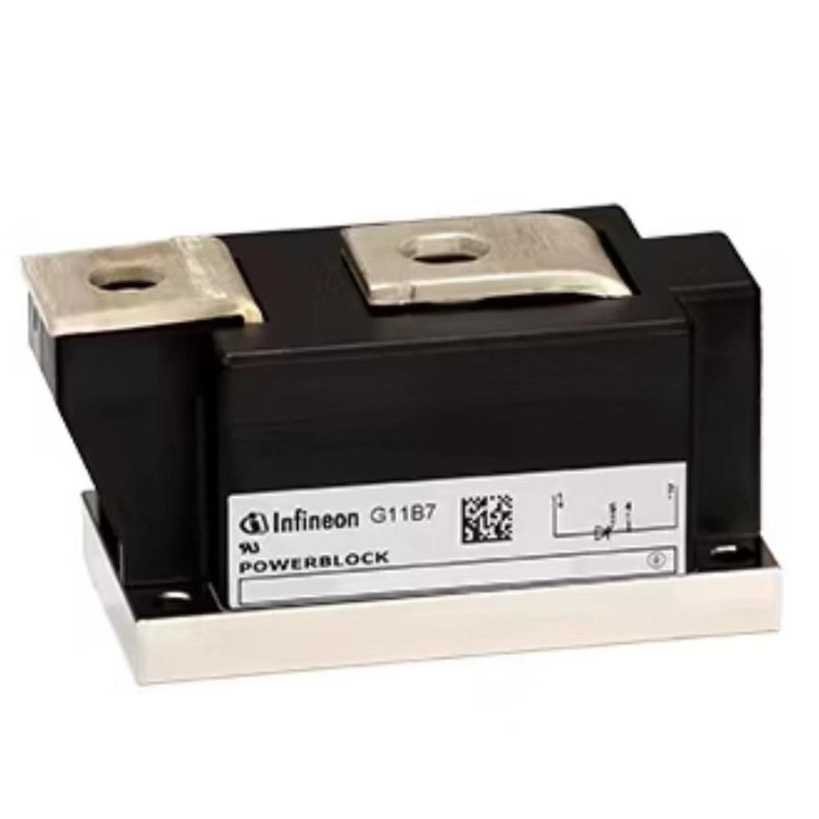

Single Thyristor Power Module

Product code:

TZ240N36KOF

Brand:

Infineon Technologies

Country of manufacture:

Usually made in Germany or Infineon affiliated industrial centers in Europe/Asia

(Infineon is a German company)

⸻

Product Description

The TZ240N36KOF module is a single-module power thyristor from Infineon, designed for heavy industrial applications, power control systems and electric drives. This piece uses Pressure Contact technology, which increases stability, high current tolerance and reliable performance in harsh industrial conditions.

⸻

Full technical specifications

• Nominal voltage (VDRM / VRRM):

3600 V (3.6 kV)

• On nominal current (IT(AV)):

240 amps

• Effective current (IT(RMS)):

About 700 amps

• Instantaneous impulse current (ITSM):

up to about 5500 amperes (in 10 ms pulse)

• Junction-to-Case thermal resistance:

About 0.078 K/W

• Maximum junction temperature (Tj):

up to +125°C

• On-state voltage:

About 1.7 volts

• Gender and structure:

Industrial body 50mm Power Block - Pressure Contact

• Gate Trigger Current:

About 250 milliamps

• Environmental standard:

RoHS compliant

⸻

Product Applications

This module is designed for high power equipment and industrial electrical systems, including:

• Industrial rectifiers

• Speed ​​control and drive of three-phase motors

• UPS systems

• Rail equipment and heavy machinery

• Power converters

• Phase control and power regulation in large industries
