Complete introduction of Magnetostrictive Linear Position Sensor

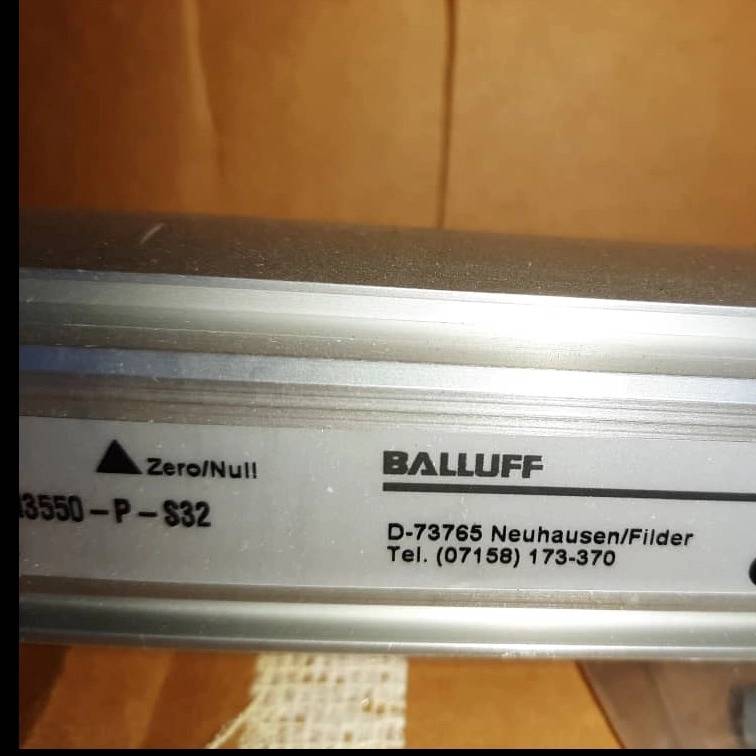

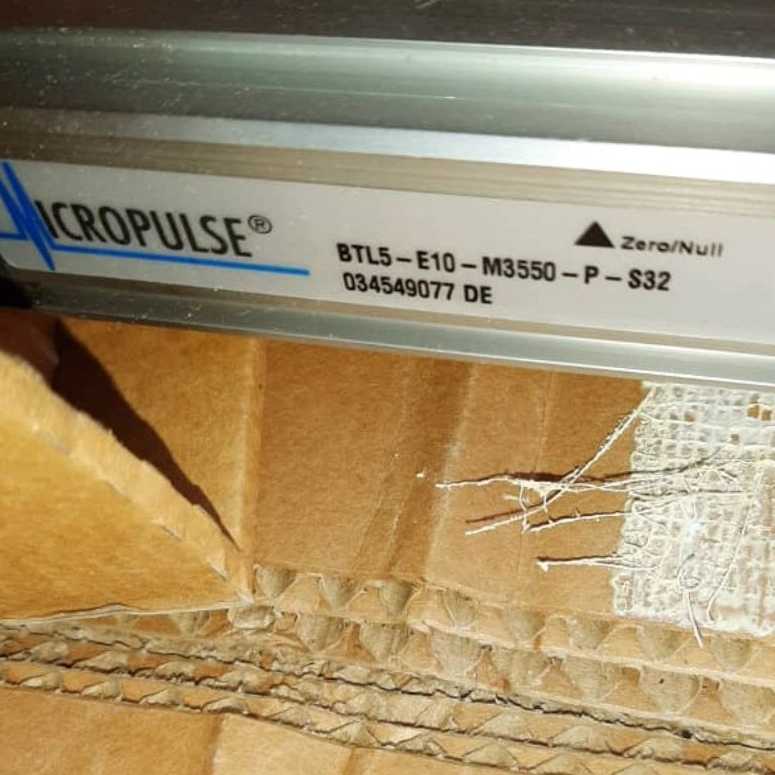

BALLUFF BTL5-E10-M3550-P-S32 sensor is one of the most accurate and reliable linear positioning sensors in the BTL5 series of the German company Balluff. This sensor works with magnetostrictive technology; That is, without mechanical contact, it detects the movement of a magnet along the length of the sensor and transmits the linear position to the control system with very high accuracy. For this reason, high durability, high accuracy and stable performance are its main features.

This model is an ideal choice for industrial machinery, hydraulic and pneumatic systems, power cylinders, robotics, production lines, and wherever there is a need for accurate and wear-free linear measurement.

⸻

Features and performance of BTL5-E10-M3550-P-S32 sensor

This sensor is designed for use in harsh industrial environments and is resistant to dust, moisture and impact due to the use of anodized aluminum body and IP67 protection standard. This model usually works with 24V DC power supply and the analog output of 4-20mA or similar models in the same series allows direct connection to industrial controllers and PLCs.

Due to the use of magnetostrictive technology, position measurement is done without contact; Therefore, no parts suffer wear or mechanical failure, and the useful life of the sensor is very long. Very high linear accuracy, good repeatability, and quick response are features that make this model chosen for sensitive applications.

⸻

Applications of BALLUFF BTL5-E10-M3550-P-S32 sensor

This sensor is used in a wide range of industries. In hydraulic systems, it is used to directly measure the position of the piston inside the cylinder and adjust the movement with high accuracy. It is also used as an accurate and stable linear sensor in press machinery, molding, plastic injection, industrial robotics, production line automation, and CNC equipment.

Stability in vibration environments, resistance to temperature changes, and the ability to work in harsh industrial conditions have made this model a reliable standard in industrial automation.

⸻

Installation and important technical points

For proper use of BTL5-E10-M3550-P-S32, BTL5 series compatible magnet must be used. The magnet is installed on the moving part and the sensor measures the position without contacting it. The correct connection of the cables, proper shielding to eliminate noise, and the solid installation of the sensor with standard fasteners are among the things that guarantee the accuracy of the output.

This sensor is usually connected through multi-pin industrial connectors that have high resistance to impact and moisture. Correct installation according to Balluff's instructions ensures that the output of the sensor is error-free and stable.

⸻

Why choose BTL5-E10-M3550-P-S32 model?

This model of Balluff sensors is known for its very high manufacturing quality, excellent accuracy, no need for maintenance, and long life. Industrial systems that require longitudinal position measurement with millimeter or even finer precision typically use this series. The non-contact technology makes this sensor an ideal choice for high-speed production lines and devices with a heavy duty cycle.

If you have a project where you need to measure the linear motion of a part with high accuracy, speed and lifetime, the BTL5-E10-M3550-P-S32 model is one of the best choices available in the global market.
