BBC Brown Boveri DC electric motors are high quality and long life industrial motors designed to work in tough conditions and continuous work. This particular motor with variable speed and power range is very suitable for applications that require precise speed control and high torque.

⸻

BBC DC electric motor technical specifications

🔹 output power

This engine has power range:

0.76 kW to 52 kW

is and provides the possibility of use in light to heavy industrial applications.

🔹 rotation speed (RPM)

Adjustable motor speed:

From 35 to 2400 rpm

Which shows the wide speed control capability.

🔹 voltages

• Armature voltage: 400 V

• Field voltage (Field): 22 to 420 volts

This feature makes it possible to control torque and speed very precisely.

🔹 consumption flow

🔹 insulation class

• Class F

Suitable for high operating temperature and heavy industrial environments

🔹 type of operation DUTY

• S1 / S1 → Continuous Duty

⸻

Structure and engine identification code

This code expresses the mechanical design and features of engine installation and cooling.

⸻

BBC DC motor application cases

✔ Cranes and winches

✔ metal rolling

✔ Extruders

✔ Heavy machine tool

✔ Industrial transportation systems

✔ Printing and textile machines

⸻

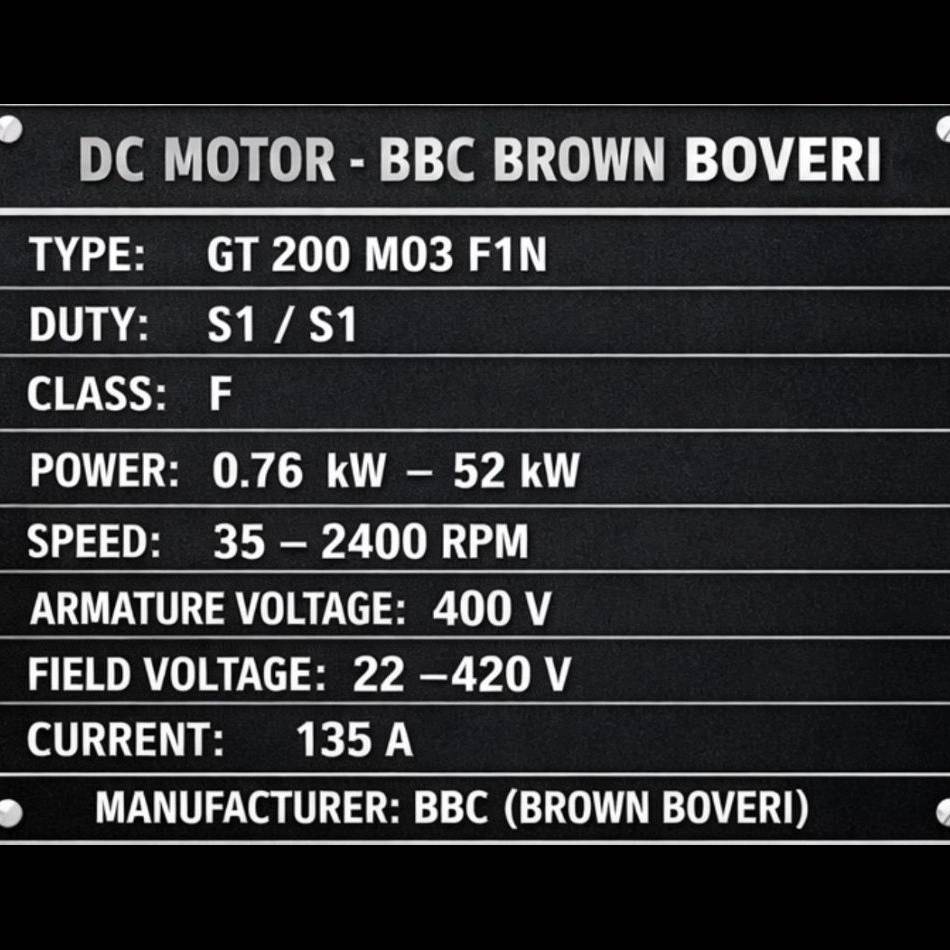

🏷 motor license plate (Nameplate)

Below is a ready text plate for this engine; You can print or use as a sticker:

------------------------------------------------

DC MOTOR - BBC BROWN BOVERI

------------------------------------------------

TYPE: GT 200 MO3 F1N

DUTY: S1 / S1

CLASS: F

POWER: 0.76 kW – 52 kW

SPEED: 35-2400 RPM

ARMATURE VOLTAGE: 400 V

FIELD VOLTAGE: 22-420 V

CURRENT: 135 A

MANUFACTURER: BBC (BROWN BOVERI)
