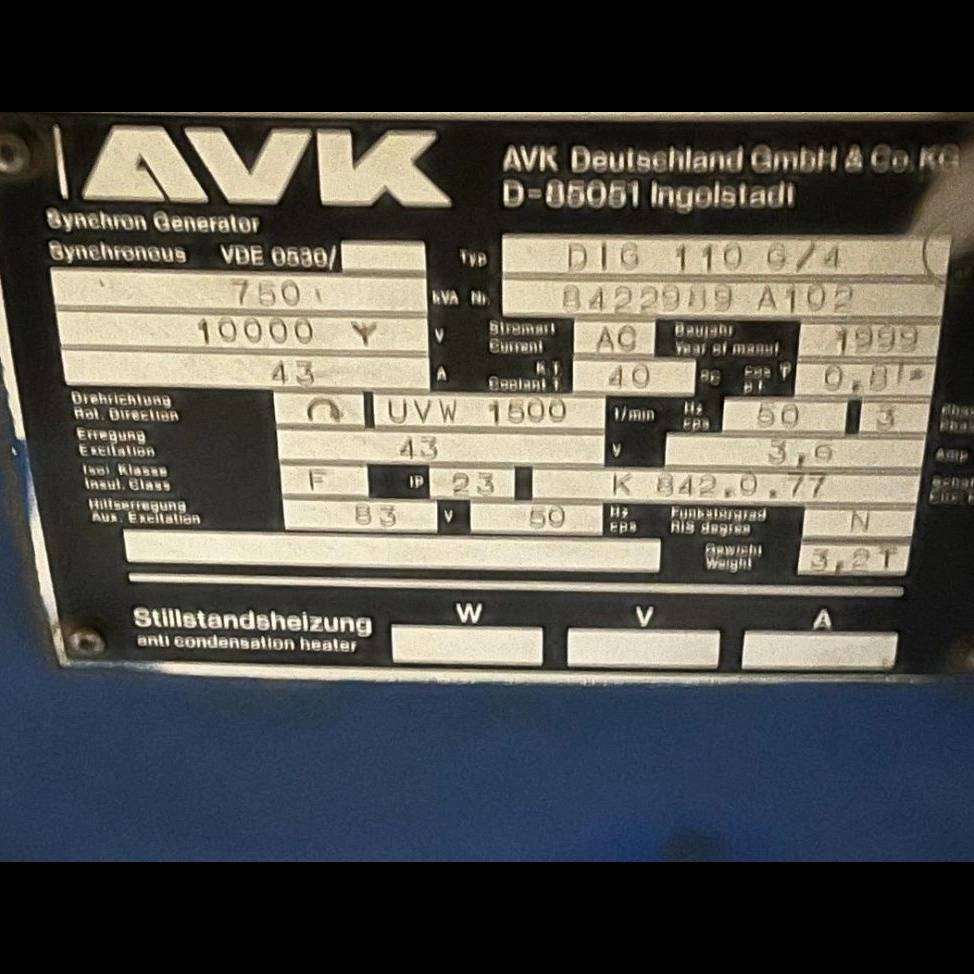

AVK 750kVA industrial alternator
Type DIG110G/4
Generator introduction
The AVK 750kVA Typ DIG110G/4 generator is a three-phase industrial alternator designed to generate electricity with a high voltage, i.e. 10,000 volts, and a frequency of 50 Hz. This generator is suitable for installation on industrial diesel engines and has the ability to provide stable and continuous electricity for industrial, power plant and emergency projects. This device is a product of 1999 and with an approximate weight of three and a half tons, it is considered a heavy and resistant alternator.
⸻
Technical specifications
This generator has a rated power of 750 kVA and works in a three-phase star connection. Its rotation speed is 1500 rpm, which is suitable for producing the standard frequency of 50 Hz. The number of poles of the device is four, and its stator and rotor coils are made of insulation class F to have high thermal resistance and longevity. The ventilation system of the generator is open and the air flow passes around the coils for proper cooling. Also, the device is equipped with an automatic voltage regulator (AVR) that keeps the voltage output stable in different load conditions.
⸻
Structure and function
The star connection of this generator causes the voltage of each phase to decrease relative to the ground and increases the safety of the device at high voltage. This structure is also suitable for long distance power transmission and connection to medium pressure transformers. The efficiency of this alternator in normal operating conditions is more than 94% and its voltage output is stable and of high quality.
⸻
Advantages and applications
AVK 750kVA generator has high power, high durability and high reliability in industrial conditions. This alternator can provide three-phase electricity with a voltage of 10,000 volts for heavy industries, power plants, data centers, hospitals and civil projects. Its most important advantages include voltage stability, high efficiency, and the ability to connect directly to medium pressure transformers.
⸻
Installation and maintenance tips
For installing the generator, a flat and well-ventilated place should be chosen. It is necessary to periodically check the electrical connections, the level of insulation and the health of the coils. It is also very important to observe safety principles and use earth protectors to prevent high voltage hazards. Regular maintenance and control of operating conditions increase the lifespan and better performance of the device.
⸻
Summary
AVK 750kVA Typ DIG110G/4 generator is a strong, stable and reliable industrial alternator that supplies three-phase electricity with a voltage of 10 thousand volts and a frequency of 50 Hz. Star connection, insulation class F, air cooling system and automatic voltage regulator make this generator an ideal choice for industrial, power plant and emergency projects.
