General specifications

Other Features

Model

76 43110H03

Dimensions

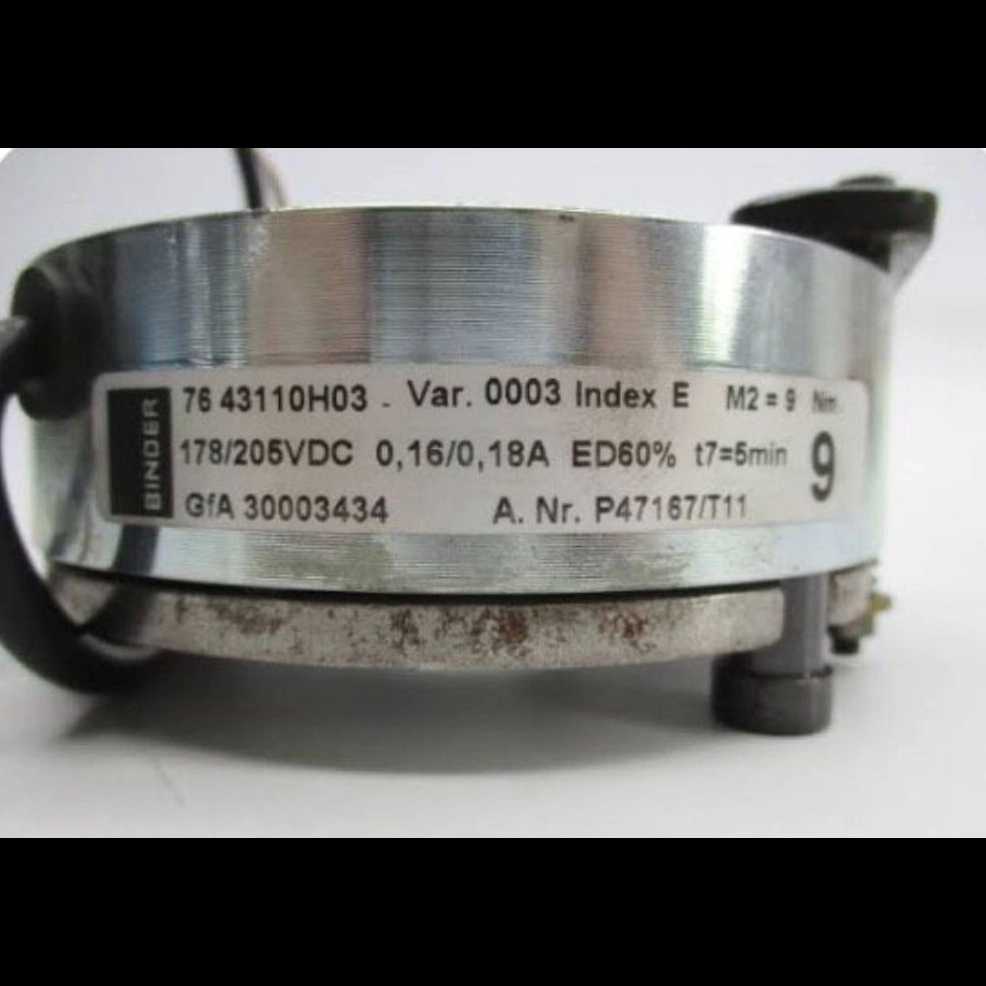

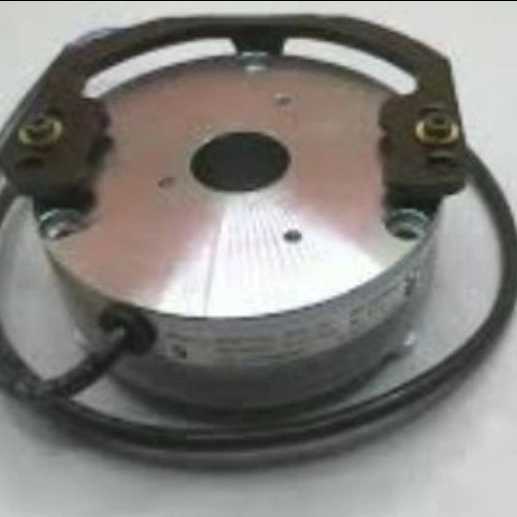

Electromagnetic brake BINDER 76 43110H03 is a high quality industrial brake Made in Germany designed to lock and safely stop the motor shaft during power failure. This model is a Spring Applied Brake type and is used in many industrial systems, especially motor gearboxes and automation equipment.

Technical specifications

Manufacturer: BINDER (Germany) Model: 76 43110H03 Index: H Coil voltage: 178 to 205 V DC Current consumption: 0.16 to 0.18 Amps
  • Duty cycle: ED 60%
  • Type/Application: Spring Applied Brake
  • Special order for: GfA Elektromaten

    • How it works

    This brake works as Fail-Safe:

    • In the power off state (normal no power mode), the springs apply the brake and lock the shaft.
    • By applying DC voltage to the coil, a magnetic field is created and the brake is released so the motor can move.

    This structure increases safety in power failure, emergency stop and prevention of unwanted movement.

    Applications

    • Industrial motor gearboxes
    • Industrial automatic doors
    • Lifting systems
    • Cranes and winches
    • Material transfer/handling equipment
    • Industrial automation lines
    • Positioning and motion control systems

    benefits

    • Quality made in Germany
    • Reliable performance and long life
    • High safety during power outages
    • Suitable for continuous industrial operation
    • Compatible with GfA equipment and many European motor gearboxes

    Inventory Status

    Kahrani Industrial Group is a supplier of all kinds of industrial electromagnetic brakes, motor gearboxes and special European parts and is ready to provide technical advice and supply this product for various industries.
