⚙️ Vacuum pump Elmo Rietschle VLT 25 (Discontinued)
product introduction

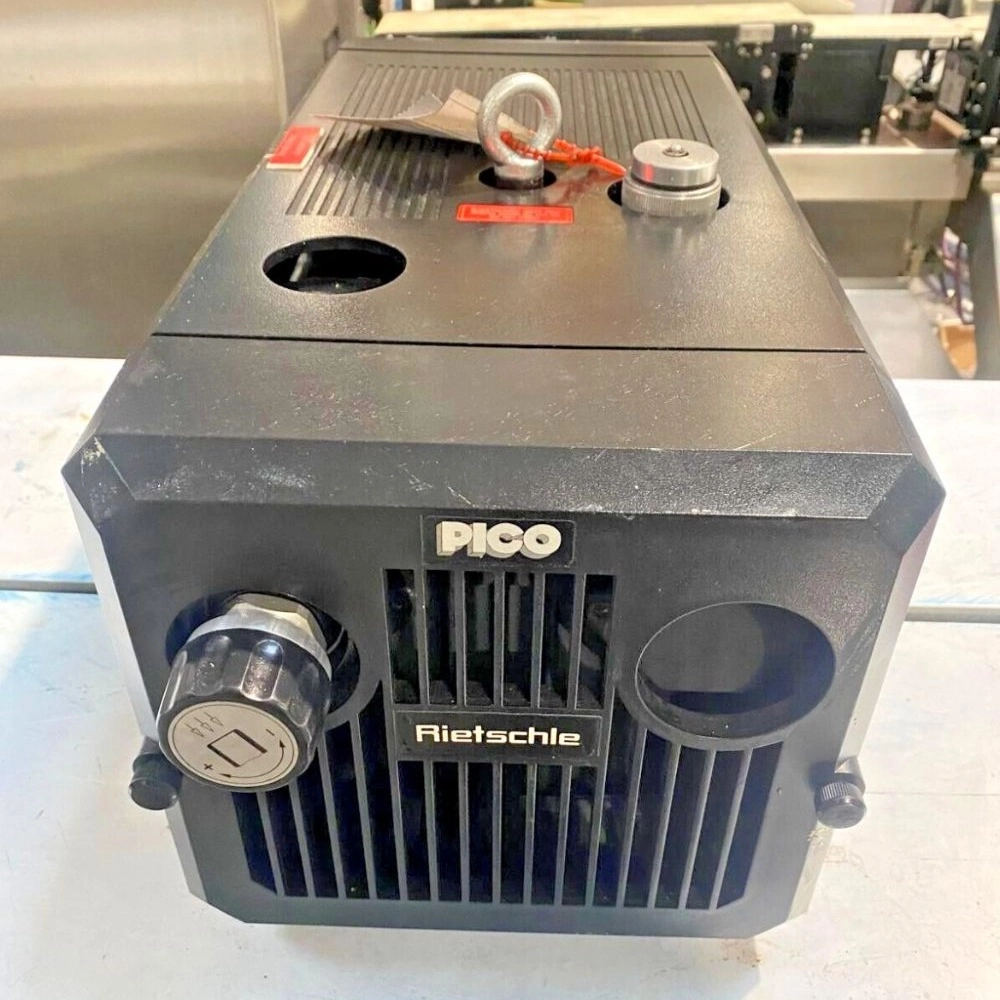

Elmo Rietschle VLT 25 vacuum pump is one of the well-known models of the VLT series of the German company Elmo Rietschle, which is designed as a dry running rotary vane vacuum pump for industrial applications.
Due to its simple structure, stable performance and industrial design, this device has been used in production lines and central vacuum systems for years and is still working in many active industrial units.
⸻
Structure and performance technology
The VLT 25 pump is based on Dry Rotary Vane technology and has the following features:
• Operation without oil in the suction chamber
• Equipped with carbon vanes
• Common axis of motor and pump

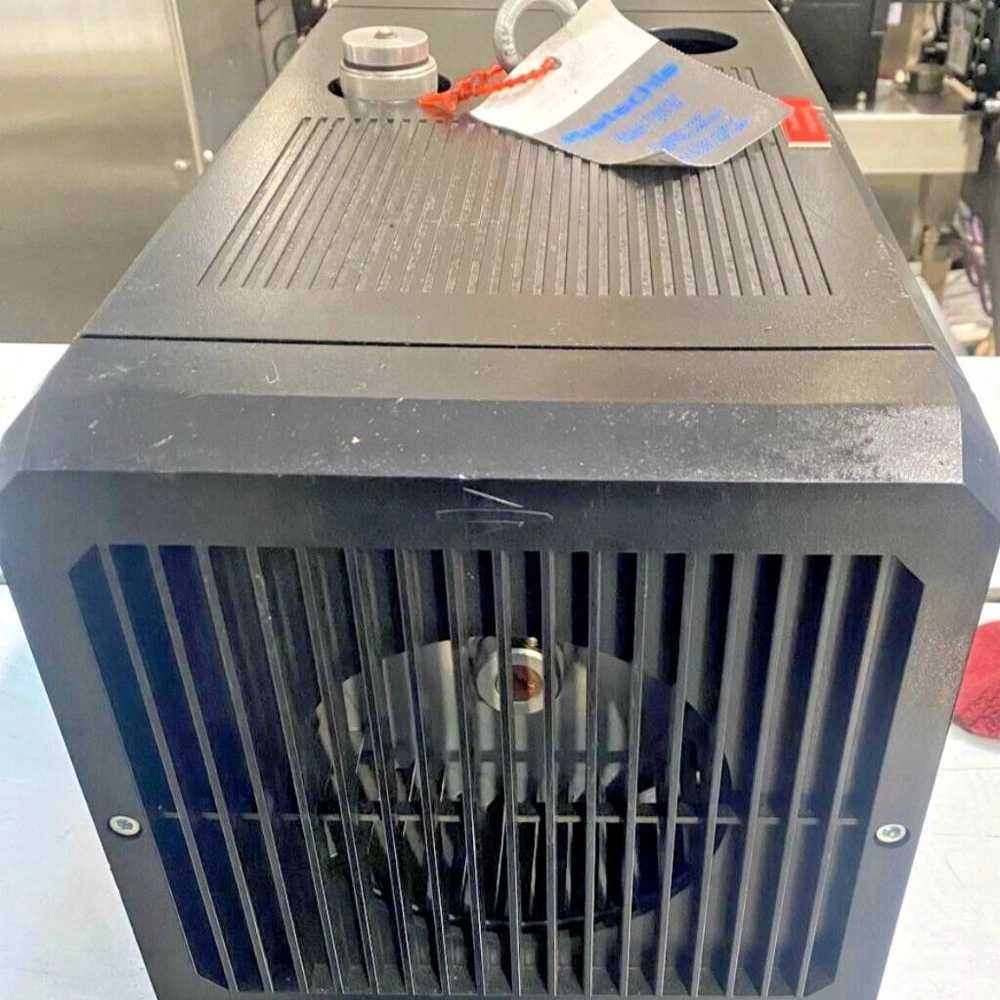

• Cooling system with air flow
• Has an internal filter to purify the incoming air
📌 This design has made the device suitable for continuous industrial operation.
⸻

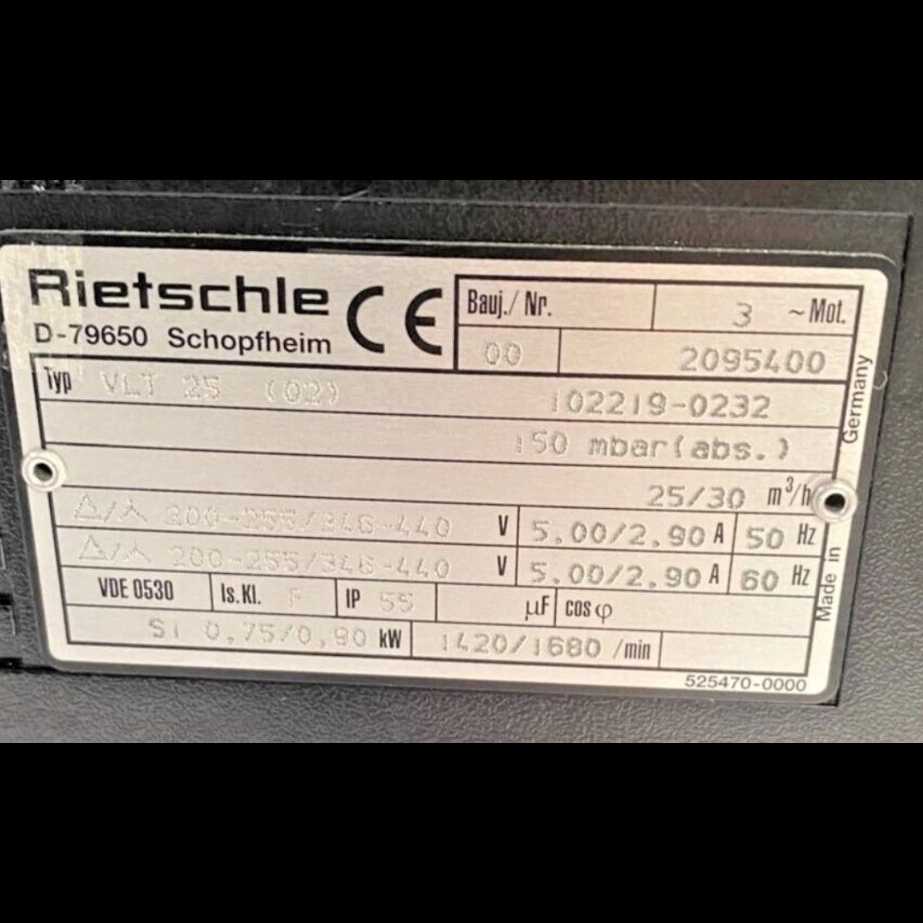

General technical specifications
• Suction capacity: about 25 m³/h
• Working vacuum range: about 150 to 1000 mbar (abs)
• Operation type: continuous duty (S1)
• System: dry (Oil-free compression chamber)
• Input power: industrial three-phase
• Work class: EN standard industrial
⸻
structural features
• Compact and integrated industrial design
• Motor and pump on a common shaft
• Has an internal filter to prevent the entry of particles
• Equipped with an output silencer
• Suitable for horizontal installation in production lines
⸻
Production status
This model is currently in discontinued production and is available in the market as follows:
• Used devices
• Refurbished devices
• Old stock (Stock New Old)
⸻
Industrial applications
This pump is used in many industries to create and maintain a vacuum, including:
• Industrial packaging lines
• CNC machines
• Wood and MDF industries
• Central vacuum systems
• Industrial automation equipment
• Displacement processes with suction
⸻
Parts condition and maintenance
• Carbon blades and consumables are still available in the market
• It is possible to repair and service the device by industrial repairmen and specialized vacuum centers
• Simple design makes periodic maintenance easier
⸻
Summary
The Elmo Rietschle VLT 25 vacuum pump is an industrial equipment with a simple structure and stable performance, which despite the production stop, is still used in many active industrial systems and can be supported in the market in terms of repairability and access to parts.
⸻
