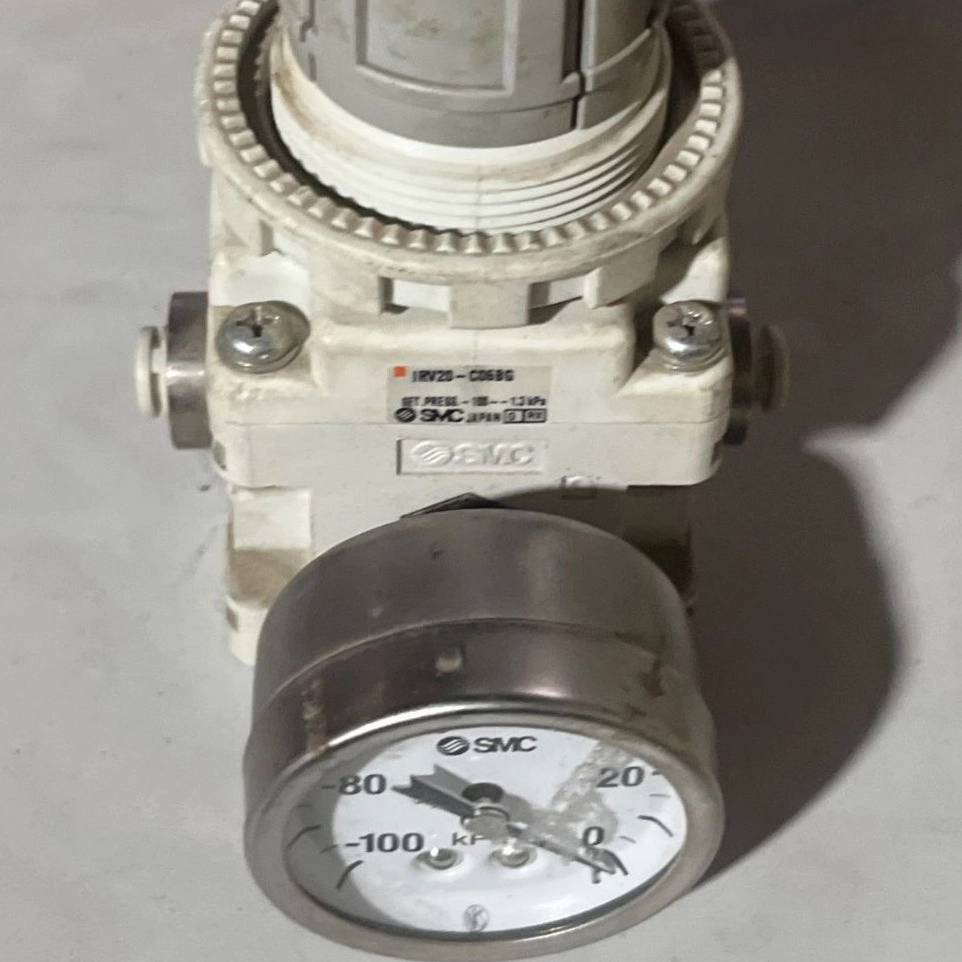

This piece is from the Japanese brand SMC and a:

Vacuum Regulator

Performance

This device is used to control vacuum pressure in pneumatic systems.

  • Keeps the pressure within the set range.
  • Adjusts from -100 to about -1.3 kPa.
  • The amount of vacuum is controlled by the adjustment screw (knob).

Main specifications

  • Model: IRV20-C06BG
  • Brand: SMC Japan
  • Type: Vacuum Regulator
  • Pressure range: -100 to -1.3 kPa
  • Working fluid: Air
  • Connections: 6mm hose
  • Adjustment accuracy: about 0.13 kPa
  • Body: industrial and light

Applications

  • Suction systems (Vacuum system)
  • Pick & Place devices
  • Packaging lines
  • Industrial robotics
  • Pressure control in air suction

Simple summary

  • Vacuum pressure controller
  • Specific for vacuum systems
  • Precise adjustment with screws
  • Reputable SMC brand of Japan

Approximate market price

  • New: about 70 to 120 dollars
  • Second hand: about 50 to 90 dollars

Depending on new or used and accessories like pressure gauge
