Almost all heavy air filters and some light cylindrical filters need a metal mesh in their structure to protect against engine pressure. They have different sizes. For this purpose, to cut these laces, the automatic guillotine plays a significant role in speeding up the cutting of laces.
Automatic cutting of air filter mesh. behan-technique.ir

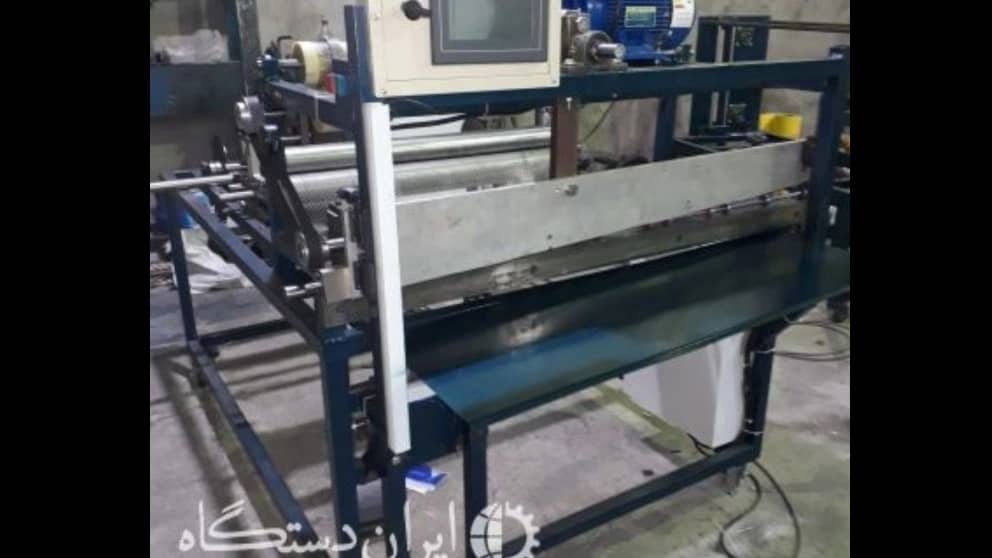

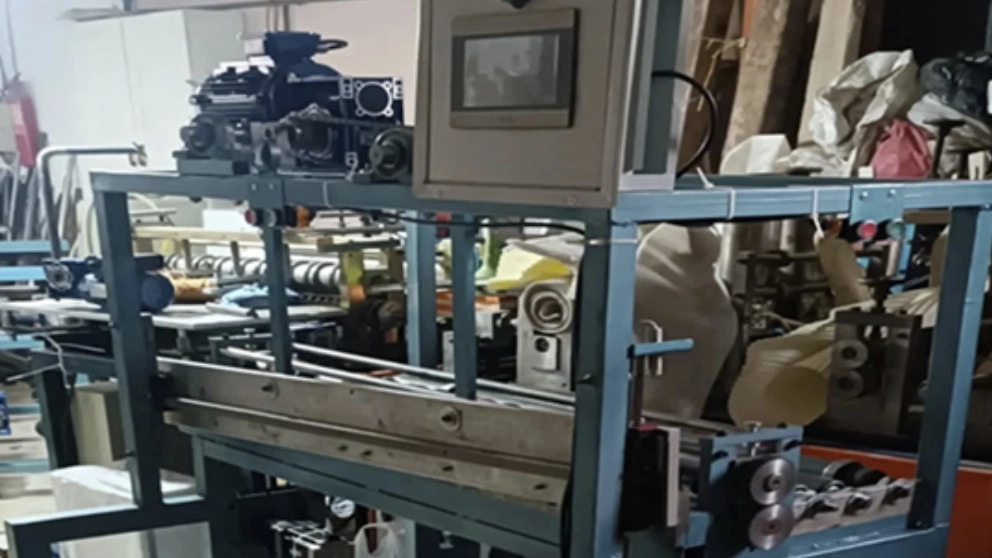

Manufacture and sale of automatic air filter net cutting machine. Notable light and heavy air filter manufacturers, Behan Technique Industrial Group has designed and manufactured the automatic air filter net cutting machine required in the structure of light and heavy filters. . which can be adjusted for different dimensions while increasing the accuracy and speed of cutting. It can also be adjusted for Pride, Arrow, Vanisan and heavy machines.
How to Work with Air Filter Filter Automatic Cutting Machine
First, we attach the roll of metal mesh to the roll of the automatic cutting machine. It passes through the guide part of the automatic cutting machine and it is transferred to the longitudinal cutting part of the mesh and the corresponding cutting is done automatically. It has reached the transverse cutting part and the next engine has also performed the transverse cutting and all the cut laces are placed on the corresponding table. In addition to automatic cutting, the number of cuts is automatically counted.
Specifications
Ability to cut up to 100 cm wide. The thickness of half a shaft.
With a collection roll for excess parts.
With a counter in the program.
Spica steel blade plated and hardened on four sides.
HMI system, plc and electronic motor. Simultaneously longitudinal and transverse
