The two ends of these vertical components, which are usually selected from 6 x 6 cans, should be properly restrained in the ceiling and floor. For this purpose, before concreting, plates must be placed inside the molds, and after the concreting is finished, the plates can be used for welding, or the plates can be placed in beams and columns with anchor bolts and used for wall post connections. did Also, the vertical edge of the blades should not be free and these edges should have a sufficient connection to another blade or a wall perpendicular to it or one of the components of the structure or a column that is made of steel, wood or reinforced concrete for this purpose. The column can consist of a stud 6 or its equivalent of steel, wood or reinforced concrete. If the length of the blade behind the strap is less than 1.5 meters, it can be free from its edge.
Wall Post Features
The wallpaper may be metal or reinforced concrete, both of which are common in construction. The important features that you should know about the wallpaper are as follows:
Method of Running Metal Post in Style Block
To implement the metal wallpaper in the light block, first, the place of the connection sheets to the floor and ceiling should be examined and determined accurately. Then, the connection is made by installing the sheets, and the wall posts are welded to the upper and lower sheets, and on one side, the block is completely formed, and on the other side, the wall post is created from inside the block.
How to Run Wall Post in Concrete Skeleton
First, the location according to the map is determined, and then the connection sheets are installed on the ceiling and floor, and the wall post is implemented. Also, the wall post installation distance should be kept empty during the implementation of the wall. When lining up the blocks in both rows, one fastener must be used to connect the two separate walls to each other, and after the wall is built, four rebars are welded to the sheets on the ceiling and floor. Then, using reinforcing wire, we connect the rebars to the wallpaper and mold both sides of the wall. In the last stage, we will pour concrete inside the molds and after opening the molds, we will have a wall panel corresponding to the thickness of the wall.
why should the walls be corner?
According to regulation 2800, the free edge of the blade walls must be restrained. For this reason, one of the tasks of the supervising engineer is the implementation of cornering to restrain the free edges of the surrounding walls in openings and parts where the wall does not continue. In this case, it is better for the supervisors to notify the owner of this task at the time of the start of tightening.
How to Run Wall Post correctly

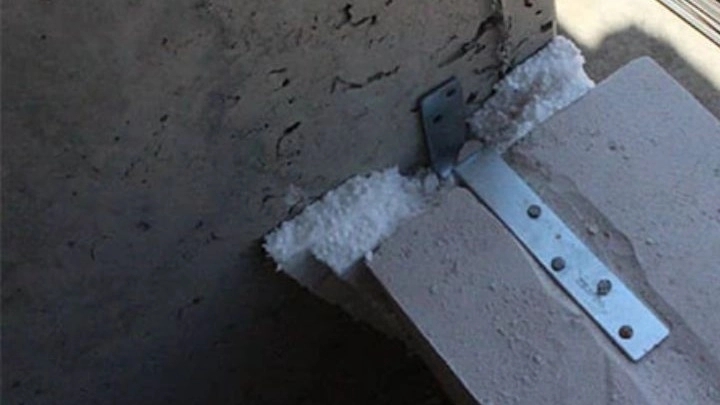

When the supervising engineers have entered the wall hardness in the calculations during the design time, the walls can be directly connected to the roof and columns. But if there is no difficulty in the calculations, they are not allowed to connect the wall in the intermediate frame to the structure directly. To separate the wall from the structure, the post wall must be installed with a distance of 5 cm from the column, and in the case of the porcelain wall, bent cane bars are welded into the corner at the height of the wall and at a distance of 70 cm from each other, and this distance of 5 cm from the corner or column must be to be filled by plastofoam.
