Aryan gearbox control panel with Advance drive is one of the most widely used and common types of elevator control panels that we intend to introduce. The technical specifications of this model of Arian gearbox control panel will be fully explained and we will also talk about the online sale of this elevator control panel.
Introducing Aryan Gearbox Steering Panel with Advance Drive
Ariyan gearbox steering panel with advanced drive, which we intend to introduce and review its technical specifications, is a practical and very best-selling product from Ariyan Elevator Company. Arian Elevator Company is considered one of the most reliable and largest domestic companies producing all kinds of elevator control panels in the country. Arian Elevator Company has been active in the field of producing all kinds of elevator control panels with all kinds of drives and the products of this company all have the necessary standards. Aryan Elevator Company is one of the few companies that have succeeded in introducing and designing systems equipped with motor speed controller (VVVF) in recent years, which have a great impact on reducing energy consumption and helping to preserve the environment.
As we know, the elevator control panel is one of the most important and vital parts of an elevator system. An elevator control panel has a large number of electronic boards, microprocessors and other electronic components that coordinately control the entire elevator system in different situations, especially during movement. Ariyan steering wheel with Advance drive is only one of the steering wheel models produced by Ariyan company, whose technical specifications and features will be described below.

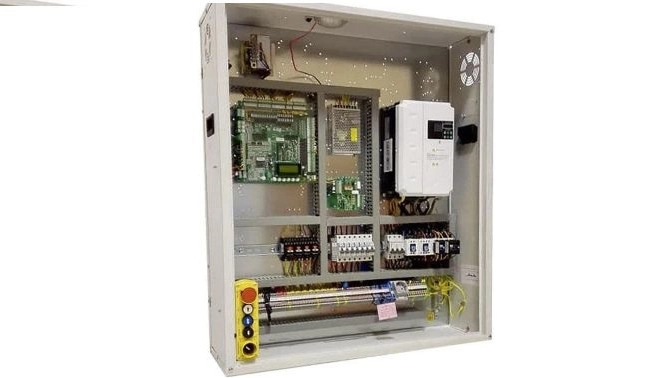

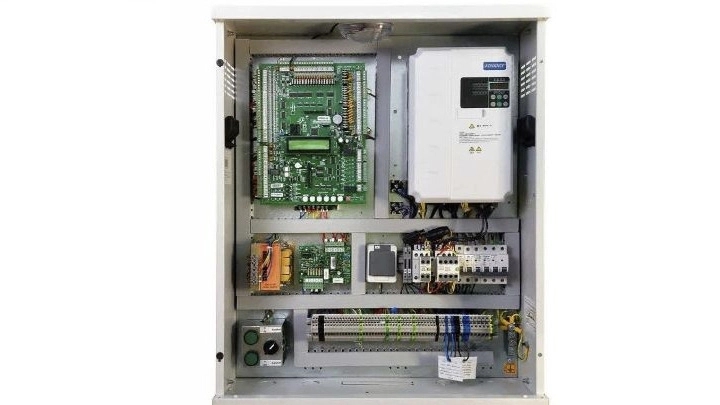

Arian gearbox control panel with Advance drive (Aris) is suitable for traction elevators and is used for single-speed and two-speed motors up to 1.6 m/s. In addition, this elevator control panel can be used in group control mode for up to eight elevators. In addition, this elevator control panel has the ability to start and use for all types of AC/DC doors.
In the following, we will try to examine the technical specifications of this elevator control panel in a completely specialized manner.
Technical Specifications of Arian Gearbox Steering Panel with Adonns Drive (Aris)
This Aryan gearbox control panel model, as its name suggests, is equipped with an Advance (Closed Loop) drive and it is possible to use the following drives for this gearbox control panel:
5 kW
>11 kW
15 kW
5 kW
This Aryan control panel has the ability to support all gearbox motors equipped with HTL 12-30V DC encoder and has the ability to detect the position of the elevator with the help of the motor encoder, and there is no need for a CF3 sensor in this control panel. In addition, this control panel is equipped with an emergency rescue system based on UPS, and it is possible to define VIP up to ten floors, as well as prioritize special services based on the needs of organizations and companies in this control panel. Among other technical specifications and features of this gearbox control panel, the following can be mentioned:
Reduction of electricity consumption costs by 50% due to having a VVVF drive
Ability to connect to CANbus buttons
Possibility of installing and connecting a weight sensor and improving the quality of elevator movement
Ability to open Fast opening of the door or the ADO function
can be used up to a height of 96 meters
supports 18 months warranty
Online sale of Arian gearbox steering wheel with Advance drive
Rasha Elevator Company has provided the possibility of online sales of Arian gearbox control panel with Advance Drive (Aris) for the buyers and applicants of this control panel all over the country so that they can buy this elevator control panel in the shortest possible time and at the most suitable price. do If you have any questions regarding how to place an online order or regarding the features and technical specifications of the product, you can contact the experts of Rasha Elevator Company.
