Solar panels are composed of photovoltaic modules that usually use silicon semiconductor as their main material. In different structures, silicon can be used as single crystal, polycrystalline or thin.
The performance of solar panels
Light absorption: When sunlight hits solar cells, photons (particles of light) create electrons in the silicon semiconductor structure.
Electric current production: The electrons created in the solar cell create an electric current due to the physics of semiconductor materials. This current is transferred to the wires and electrical energy is produced.
Conversion to alternating current: The electrical energy produced is first in the form of direct current (DC). Then, if it wants to be connected to the power grid or used in some applications, it is converted into alternating current (AC) by a device.
Usage or storage: The generated electrical energy can It can be used directly to meet the electricity consumption needs of a building or it can be stored in batteries or energy storage systems and used when needed.
Benefits of solar electricity
Sustainable and clean: Solar panels do not produce any polluting gases or particles and are environmentally sustainable.
Renewability: Sunlight as a renewable resource, It is sustainable and uses nature endlessly.
Improved efficiency: Technological advances in the field of photovoltaic modules improve efficiency and reduce installation and maintenance costs. is.
Types of solar panels
Monocrystalline: Monocrystalline solar panels are made of monocrystalline silicon with high efficiency and temperature tolerance, suitable for generating electricity in different conditions. These panels are chosen as a common option in solar systems due to their relatively high production cost.
Polycrystalline: Polycrystalline solar panels are made of polycrystalline silicon crystals and with reasonable cost and temperature tolerance, they are an economical option for generating solar electricity. Thin: Thin solar panels are a type of photovoltaic technology that uses thin layers of semiconductor materials. Due to their low thickness and light weight, these panels are suitable for installation in limited spaces and on different surfaces.
Single crystal solar panels
Specifications of solar solar panels
Polycrystalline solar panels have solar cells containing multiple silicon crystal parts. These parts may be leftover parts from single crystal panels. They are arranged irregularly. They are then melted together and formed into solid blocks before being cut. Although the amount of energy produced by these panels is the same as monocrystalline panels, these panels are cheaper than monocrystalline panels and they work better than monocrystalline panels in cloudy weather, but they occupy more space, so for the location Small ones are not economical.

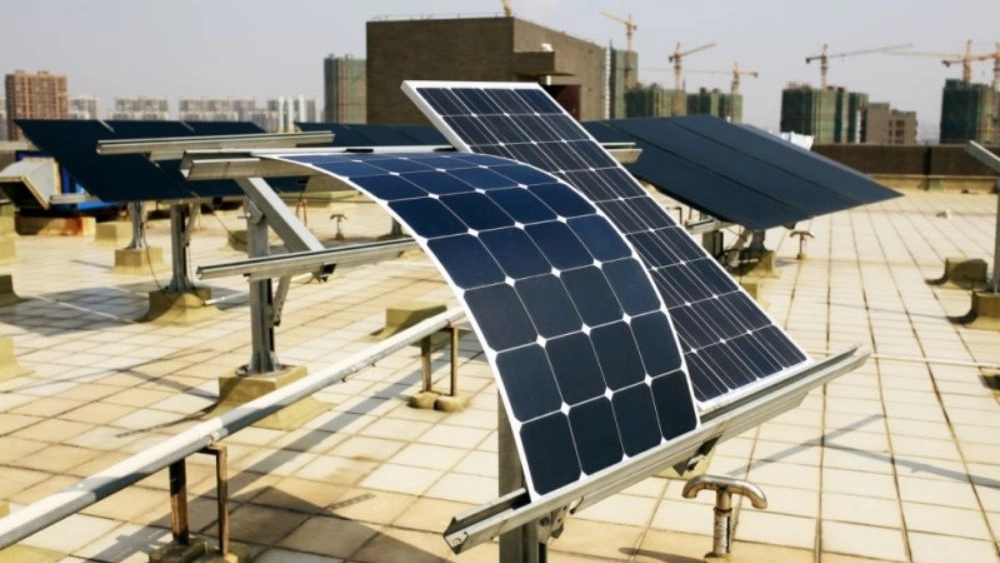

Thin layer solar panels
Thin-film solar panels, called second-generation solar cells, can be made of various materials, including:
Amorphous silicon (without a crystalline lattice)
Gallium arsenide
Copper Indium Gallium Selenide (CIGS)
Cadmium Telluride (CdTe)
Each thin layer cell is about 350 times thinner compared to other types and the flexibility of these panels is high. They may be applied by an adhesive directly to a surface (such as a roof or a car). The efficiency of a thin film solar module is low compared to its crystalline counterpart. Therefore, if you use thin film modules, you will need more space. But in the specifications of thin solar panels, they will tolerate advantages such as higher working temperature, while they perform better in shorter wavelengths. Therefore, for areas closer to the equator, such as the southern regions of the country, where the air temperature is higher and the wavelength of the sun is shorter, a thin panel is a good choice.
Specifications of the 250 watt solar panel
Usually, after choosing the type of solar panel, it is time to choose the output value of the solar panel, and in the meantime, the 250 watt solar panel has many fans. This panel is very popular because it has high efficiency for constant outdoor use and is very suitable for charging 12 volt batteries for use in houses, motorhomes, boats, sheds, farms, telecommunication towers and monitoring equipment. This type of panel has a special 5-meter solar cable that can work at high temperatures with minimal energy loss.
