• Free installation
• Dual burner
• Maximum allowable working pressure 4 bar
• Has a capacity of 334000 kcal/hr
• Create proper distribution of water circulation in all vanes
• Maximum allowable working temperature 105 degrees Celsius
• Ease of service and low maintenance cost
• Heat shield to prevent flame contact with the vane
• Metal chassis suitable for expansion and contraction due to temperature changes
• Complete insulation of the cover to minimize the process of heat loss
• Maximum heat transfer in the combustion process due to the passage of flame and smoke through three passes
• Design as single blades that can be assembled in the engine room for ease of transportation
• Possibility of embedding fireproof (or sealing paste) in the space between the blades for smoke containment Boiler
• Using refractory cast iron with a combination to protect against corrosion and thermal shock
• Preventing temperature differences in different parts of the boiler due to the presence of a water diffuser pipe in the boiler
• The presence of multiple fins on the inner surface of the combustion chamber of the passes to significantly increase the heat levels compared to integrated boilers

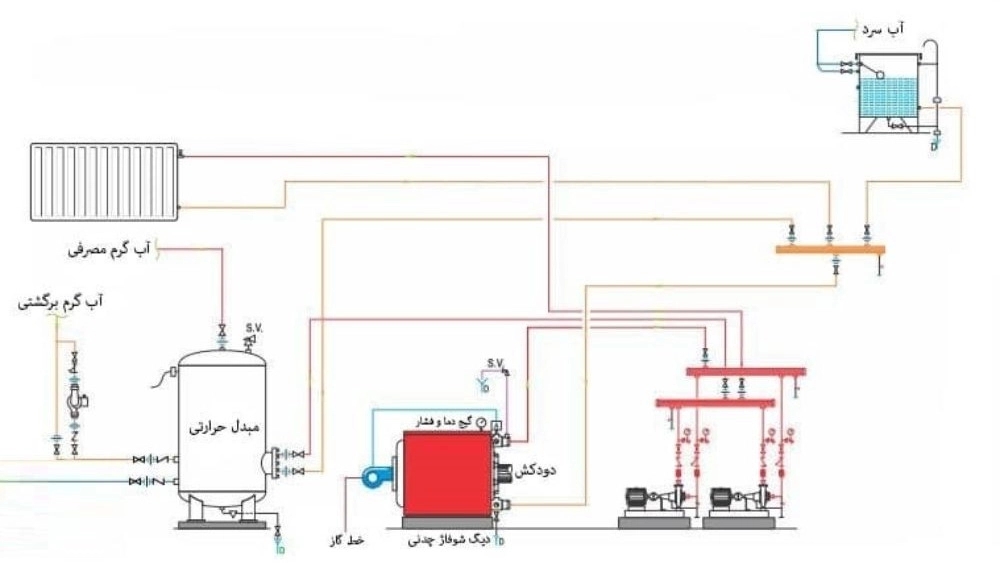

• This boiler is used in the thermal engine room to produce space heating and spa heating, as well as feed heat to the single-effect chiller generator of the spa. Shows
• Cast iron turbo boilers of Shofajkar Industrial Company have mandatory standards 4472 and 4473 as well as ISO 9001:2008 quality management certificate from SGS Switzerland.

In the 40s, when the vacuum of a facility company was well felt in the entire Iranian consumer market, the shareholders of Shofajkar Company, understanding this need and with the approach of domestic production and localization of facility knowledge, started the establishment of Shofajkar Industrial Company. It is obvious that the creation of this company required infrastructures, which due to the time of the creation of the company and the lack of necessary conditions, the provision of these infrastructures for the whole country was done by the efforts of this group, and Cheshak store officially started its cooperation with Shofajkar company in 2019. Shoufagekar company bought machinery and equipment and production know-how from Ahlman factory in Germany and started production under the license of the German company. And from the very beginning, by using advanced technical knowledge and expanding connections with major companies in the world, it introduced itself as the first producer of all kinds of cast iron boilers in the Middle East region, and gradually with the expansion of production, today it produces and exports a large volume of gas and diesel-burning products with a capacity of 18,000 to 1,300,000 kilocalories per hour and solid fuel boilers with a capacity of 25kw to 100kw and exports to domestic and foreign markets.

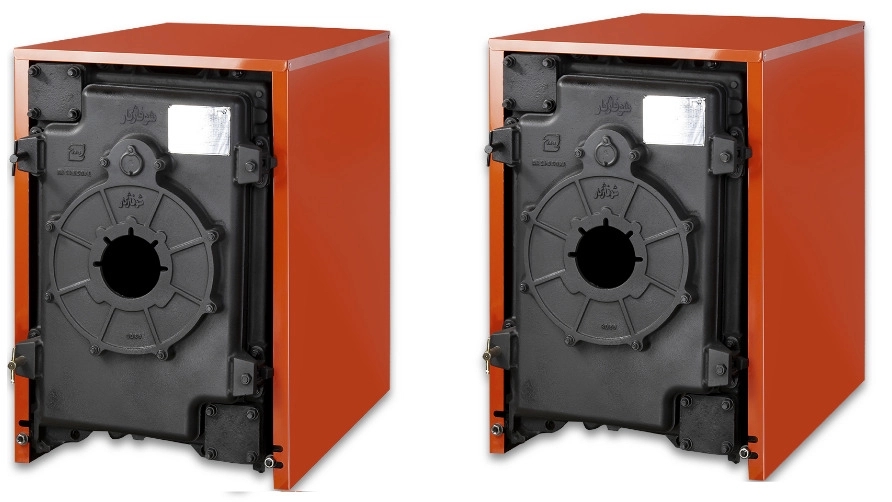

Technical specifications of shofajkar cast iron boiler

Shofajkar cast iron spa boiler, turbo model, has a thermal capacity of 243,000 to 560,000 kilocalories per hour, with a maximum working pressure of 10 bar or 100 meters height in the case of special sealing and 4 bars or 40 meters and 13 floors in the case of normal sealing and a maximum working temperature of 105 degrees. The design of the turbo boiler is real 3 passes of flame and smoke, and the back blade of the boiler is WET BACK, which is cooled by circulating water. The material of the boiler is special cast iron alloy, which, in addition to having a suitable heat transfer, has a high resistance against oxidation and chemicals, environmental humidity and combustion factors, and has a long life and high productivity. This boiler is used in central heating engine houses for the production of ambient heating and the production of sanitary spas, as well as feeding the single-effect absorption chiller generator. The turbo heating boiler is compatible with the BMS energy management system in the building and also has the ability to be placed in the engine room along with solar panels and a solid fuel boiler. The thickness of the body of the boiler is 6 mm and it has a working pressure of 4 atmospheres and a 13-level pressure gauge has a pressure equivalent to 40 meters.

Horizontal multi-pass heating boilers are made of cast iron alloy, with 3 separate passes of smoke and flame movement, where the flame and water channels are perpendicular to each other. The rear blades are of Wet back type, which are cooled by water. Shofajkar cast iron boilers are also equipped with a multi-water jet water distribution system, heat shield and a fully insulated body, the design of which is in accordance with the most advanced technology available in the world, which is very effective in increasing efficiency, reducing fuel consumption, and prolonging the life of the boiler.

Thermal efficiency

Gender

Shofajkar spa boilers are made of special alloy cast iron and resistant to heat, wear, rust and corrosion against chemicals. Also, due to having a uniform body material, thermocouple (bimetallic) corrosion does not occur in these boilers. Periodic services and washing of water salts inside the boiler will not cause corrosion and decay in the body of these boilers.

Shipping

Sofajkar cast iron boilers are produced and shipped in fins. The operation of assembling and assembling the boilers is done inside the engine room of the consumer.

Spray pipe

Shofajkar cast iron boilers are equipped with a water distribution pipe made of polyamide, which is installed in front of the water return flange to the boiler, for uniform distribution of water and increasing the movement of water in vertical channels. This device causes thermal balance and reduces thermal shocks caused by the entry of cold water into the hot boiler, and as a result increases the life of the boiler.

Foundation

For the correct installation and alignment of the cast iron boilers, the blades of the boiler are assembled together on a steel chassis.

Thermal cast iron shield

Refractory cast iron plates are installed in a part of the roof of heating boilers, which creates uniformity and heat balance in the roof of the boiler and prevents the creation of hot spots in the boiler. This can reduce the precipitation of solutes.

Insulation

Metal covers of boilers are covered with thick layers of glass wool. Also, the types of insulation used in the door and burners reduce heat loss from the body of the boiler, and as a result, fuel consumption is also reduced.

Body thickness and working pressure

Shofajkar spa boilers in Super 300 and 400, Solar 300 and 400 models, as well as Turbo models, have a thickness of at least 6 mm. These boilers are tested in the form of fins in the factory under a pressure of 6 atmospheres; And after assembling at the place of use, they have the ability to work up to a pressure of 4 atmospheres. 1300 Super Hit and Star boilers have a minimum body thickness of 9 mm. 1300 Super Heat boilers are designed and produced for use at a working pressure of 6 atmospheres and 1300 Star boilers are designed and produced for use at a working pressure of 10 atmospheres. The maximum working temperature of all cast iron boilers of Shofajkar Spa is 105 degrees Celsius.

Guarantee of cast iron boiler Shofajkar Turbo model 10 blades

Latifi Installation Store As the official representative of Shofajkar Company, it provides the company's products with a 10-year warranty and technical support and extensive after-sales services of this company. Therefore, you can buy Sofajkar Turbo 10-blade Cast Iron Boiler with 10 guarantee online or in person from Cheshk store.

Reliable shopping experience

Our suggestion to you is to first clear all possible doubts and buy a cast iron pot online or in person for a safe purchase. Our experts at Tasasati Latifi store are always waiting for your calls so that they can answer your questions if you encounter any ambiguity or question in any of the stages of choosing or buying a cast iron pot, such as calculating the capacity, etc. So keep in touch with us.
