Installing and designing an old building elevator is one of the important issues in the renovation and optimization of urban buildings. Many old buildings in the country did not have elevators when they were built, and today, when the population living in these buildings has increased, the need to install elevators is felt more than ever. But is it really possible to install elevators in old buildings? The short and clear answer is: yes, it is possible. But for its basic implementation, the detailed steps of design, technical review, strengthening of the structure and selection of equipment must be done carefully. Join us in the future to examine the details of elevator design in old buildings from an expert point of view and to know the role of Hagitt Industrial Group in this field.
Why is the design of the elevator of the old building important?
With the passage of time and the wear and tear of structures, the problems of accessing higher floors have increased for the residents of old buildings. Especially in apartments where elderly people or people with limited mobility live, the lack of an elevator can cause fatigue, physical injuries or even leave the building by some residents.
Designing an elevator in an old building is an efficient solution that, in addition to increasing comfort and well-being, also increases the property value. Installing an elevator in an old 4 or 5 story building alone can increase the value of the property by 30%. On the other hand, renovation of buildings with the help of vertical transportation systems is considered one of the important ways to increase the safety and useful life of the building.
Elevator design challenges in old buildings
While elevators can be installed in most older buildings, this is not possible without a thorough technical review. The most important challenges faced by designers are:
1. Lack of enough space for the elevator shaft
In the past, when designing buildings, an independent place for the elevator shaft was not considered. As a result, it is necessary for the designer to first check whether it is possible to place a well inside the building or not. In some cases, it may be necessary to rebuild a part of the staircase or common space for this.
2. Structural limitations
Old buildings usually have a weaker structural system than new buildings. Before starting the work, foundation, columns and bearing walls should be tested. The structural engineers in Hachit industrial group measure the load bearing capacity and strength of concrete using precise tools to ensure the safety of the structure.
3. Electrical and dashboard issues
In the design of the elevator of the old building, sometimes the electrical system does not have enough capacity to carry the load and the motor. In these cases, the building's electrical panel and cabling must be modified to optimize energy consumption and ensure safe operation of the elevator.
4. Coordination with residents and enforcement restrictions
One of the other important challenges is to carry out construction operations in a space that is currently the residence of families. For this reason, it is necessary to carry out the work with careful planning and minimal disturbance. The specialists of the truth industrial group carry out all the installation steps in full compliance with safety precautions and in a short time.
Creative solutions for elevator design in old buildings
Designing an elevator for an old building requires engineering creativity. In many cases, engineers use innovative methods to fit the elevator system in a limited space.
1. Installing an elevator outside the building

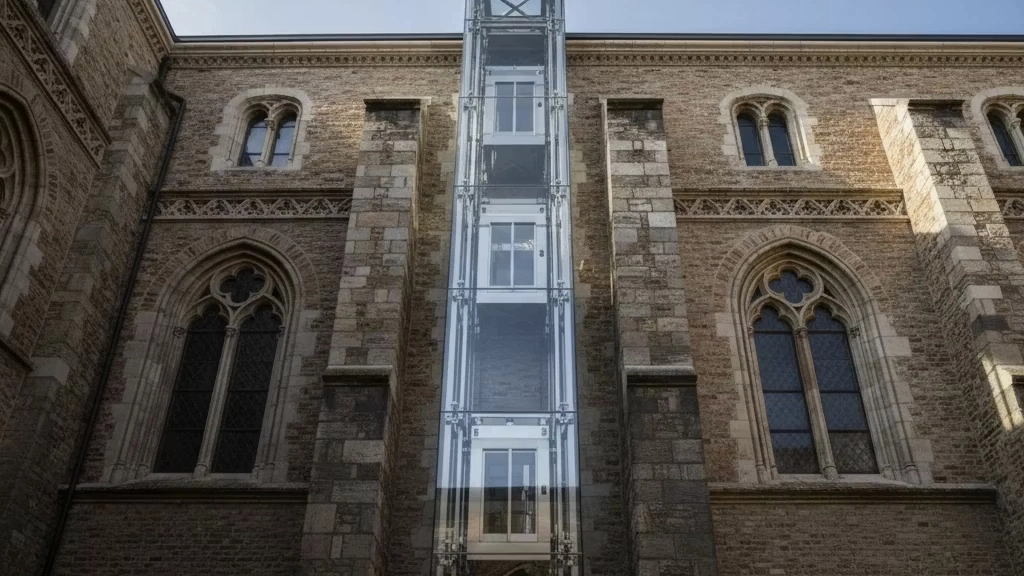

If there is no internal space for the elevator shaft, an external shaft can be designed. In this method, the elevator is installed next to the outer wall of the building and is connected to the floors with the help of doors and footrests. This method gives a modern look to the building while preserving the interior space.
2. Using self-standing chassis
In some projects, Hahitt industrial group uses self-standing chassis. This method does not require significant demolition, and the entire weight of the elevator is transferred to the metal chassis, not the main structure of the building. Such methods are very suitable for buildings with weak structures.
3. Elevators without shafts or with minimal shafts
In recent years, hydraulic elevators with the least need for shafts have become popular. This type of elevator allows installation in buildings with limited space. The design of the elevator of the old building with hydraulic technology is one of the specialized services of Hahitat Industrial Group.
Design stages of the elevator of the old building
1. Initial visit and mapping of the building
In the first step, the engineering team prepares a detailed map of the state of the stairs, walls and common spaces by being present at the building site. This stage is considered the main basis of design.
2. Checking the structure and strength of materials
In old buildings, it is necessary to evaluate the resistance of the structure to bear the load of the elevator. This review includes concrete testing, welds, connections and columns.
3. Choosing the type of elevator
Depending on the conditions of the structure and the number of floors, the appropriate type of elevator is selected. Traction, hydraulic or self-standing chassis elevators each have their own advantages and limitations.
4. Well design and movement path
At this stage, the dimensions of the well, the place where the floors stop and how the doors are opened are determined. Hachit Industrial Group uses specialized design software to maximize work accuracy.
5. Implementation of metal structure and installation of equipment
After the approval of the final design, the executive operation begins, which includes the construction of the metal frame, installation of rails, engine and steering system. The quality of the equipment is very effective in the efficiency and durability of the elevator, that's why Hachit Industrial Group uses reliable and international standard parts.
6. Safety testing and delivery
After the installation is finished, several tests are performed by safety experts to ensure that the elevator works according to the Iranian national standard. Then the project is delivered to the employer.
Advantages of installing an elevator in an old building
- Increasing the comfort and well-being of the residents
- Increasing the value of the property in the housing market
- Increasing traffic safety for the elderly and children
- Helping to renew the urban fabric
- Saving energy by using low consumption engines
- Increasing the life of the structure and strengthening the floors
The specialized services of Hahitt Industrial Group in the design of the elevator of the old building
Haqirat Industrial Group is one of the most well-known groups in the field of elevator technical services in Iran, with years of experience in designing, manufacturing and installing all kinds of elevators and lifts. The specialty of this group is special design for old and limited buildings; Where most companies give up implementation, but true engineers provide a practical solution.
The salient features of this group's services include the following:
- Completely exclusive design based on the conditions of each building
- Using European standard parts compatible with Iran's weather conditions
- Fast and clean execution without damage to the main structure of the building
- Providing warranty and long-term after-sales service
- Free consultation to estimate cost and execution time
Important points before starting the design of the elevator of the old building
- Obtaining a permit from the municipality: Some cities need to obtain an official permit to change the structure.
- Exact cost estimate: Depending on the type of elevator, the installation cost will be different.
- Cooperation with a reputable company: Be sure to use collections that have a successful history in similar projects, such as Haqit Industrial Group. to create a beautiful effect in addition to performance.
The cost of designing an elevator in an old building
The final cost of designing an old building elevator depends on various factors, including the type of elevator (hydraulic, traction, or chassis), material, control system, number of stops, and structural conditions.
In most cases, installing an elevator for an old building costs between 300 and 800 million Tomans. But considering the increase in the value of the property after installation, this amount is actually considered as an investment.
The truth industrial group provides employers with an accurate estimate of costs with complete transparency so that there are no hidden costs in the implementation process.
conclusion
In response to the question "Is it possible to design an elevator for old buildings?" It should be said Yes, it is 100% possible; Of course, provided that the detailed design, structural review and technical calculations are done by experts.
Today, with new technologies and the experience of companies such as Haqit Industrial Group, even the smallest buildings can benefit from an elevator. If your building is old, but you are looking for comfort, safety and increasing the value of the property, contact the experts of Hahitat Industrial Group today to benefit from free consultation on the design of the elevator of the old building.
